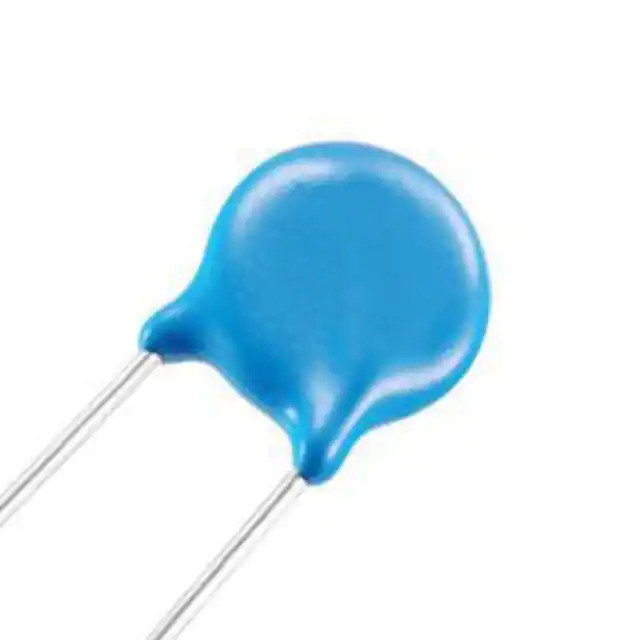

Same model may have multiple batches, images only for reference.
680KD10 Yageo
Same model may have multiple batches, images only for reference.

680KD10

Part No 680KD10
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 68 V 1 kA Varistor 1 Circuit Through Hole Disc 10mm
Datasheet
680KD10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr YAGEO
Series 10D
Package Bulk
Product Status Active
Maximum AC Volts 40 V
Maximum DC Volts 56 V
Varistor Voltage (Min) 61 V
Varistor Voltage (Typ) 68 V
Varistor Voltage (Max) 75 V
Current - Surge 1 kA
Energy 8.2J
Number of Circuits 1
Capacitance @ Frequency 1500 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Features -
Mounting Type Through Hole
Package / Case Disc 10mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1360955-680KD10
Ultra Librarian 3D Model Ultra Librarian 680KD10 CAD Model

Description

The 1360955-680KD10 is a varistor, also known as a transient voltage suppressor (TVS), with a capacitance of 1500 pF and a maximum AC voltage of 40V.

  • Capacitance: 1500 pF
  • Maximum AC Voltage: 40V
  • Varistor Voltage: 61V to 75V
  • Surge Current: 1kA
  • Mounting Type: Through-Hole
  • Package: Disc 10mm
  • Series: 10D
  • Packaging: Bulk
