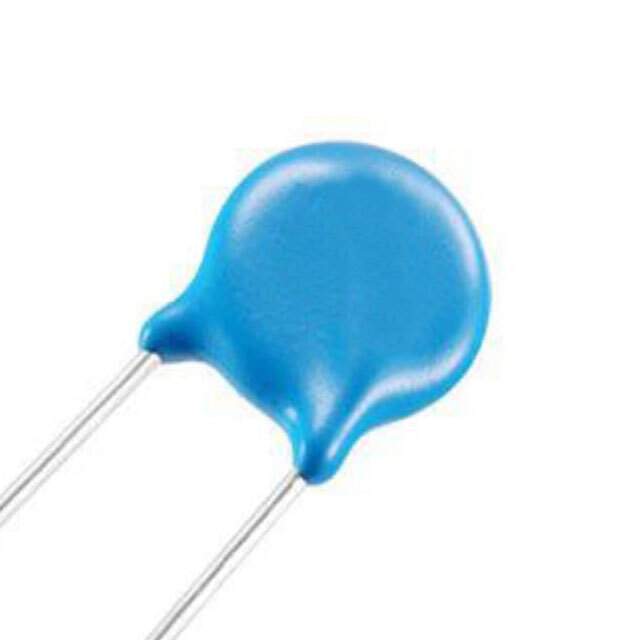

511KD10 Real Image
Same model may have multiple batches, images only for reference.

511KD10

Part No 511KD10
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 510 V 3.5 kA Varistor 1 Circuit Through Hole Disc 10mm
Datasheet
511KD10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Manufacturer Yageo
Packaging Bulk
Maximum AC Volts 320 V
Maximum DC Volts 415 V
Varistor Voltage (Min) 459 V
Varistor Voltage (Typ) 510 V
Varistor Voltage (Max) 561 V
Current - Surge 3.5 kA
Energy 69J
Number of Circuits 1
Capacitance @ Frequency 200 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C
Mounting Through Hole
Case / Package Disc 10mm
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Part Number 13-511KD10
Standard Package 500
Win Source Part Number 1334766-511KD10
Ultra Librarian 3D Model Ultra Librarian 511KD10 CAD Model

Description

The Yageo 1334766-511KD10 is a TVS varistor circuit protection component.

  • Capacitance: 200 pF @ 1 kHz
  • Varistor Voltage Range: 459V to 561V
  • Surge Current: 3.5 kA
  • Maximum AC Voltage: 320V
  • Maximum DC Voltage: 415V
  • Energy Rating: 69J
  • Mounting: Through-Hole
  • Packaging: Bulk of 500 units
  • Size: Disc 10mm
  • Operating Temperature Range: -40°C to 105°C
  • Compliance: ROHS3
