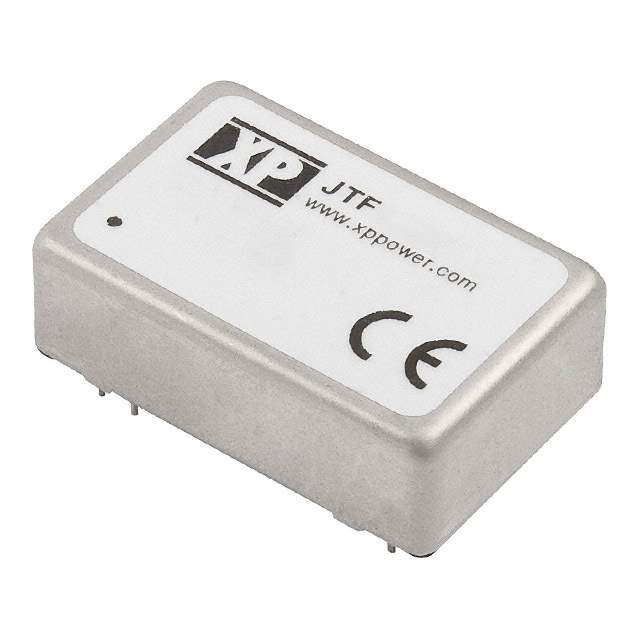

Same model may have multiple batches, images only for reference.

JTF0824S12

Name: JTF0824S12
Brand: XP Power
SKU: 1340023
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JTF0824S12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 8W / Isolated Module DC DC Converter 1 Output 12V 665mA 9V - 36V Input
Datasheet	JTF0824S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JTF (15W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	665mA
Power (Watts)	8 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	87%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Control Features	Enable, Active High
Standard Number	62368-1
Base Product Number	JTF0824
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340023-JTF0824S12
Ultra Librarian 3D Model	Ultra Librarian JTF0824S12 CAD Model

Alternative Products

Description

The JTF0824S12 is an isolated module type DC-DC converter designed for power supplies on board mount applications.

Features: Remote On/Off, OCP, OVP, SCP
Power (Watts): 8W
Efficiency: 87%
Control Features: Enable, Active High
Voltage - Isolation: 1.6kV
Number of Outputs: 1
Voltage - Output 1: 12V
Current - Output (Max): 665mA
Voltage - Input (Min): 9V
Voltage - Input (Max): 36V
Package / Case: 24-DIP (8 Leads)
Operating Temperature: -40°C to 105°C
Applications: ITE (Commercial)
