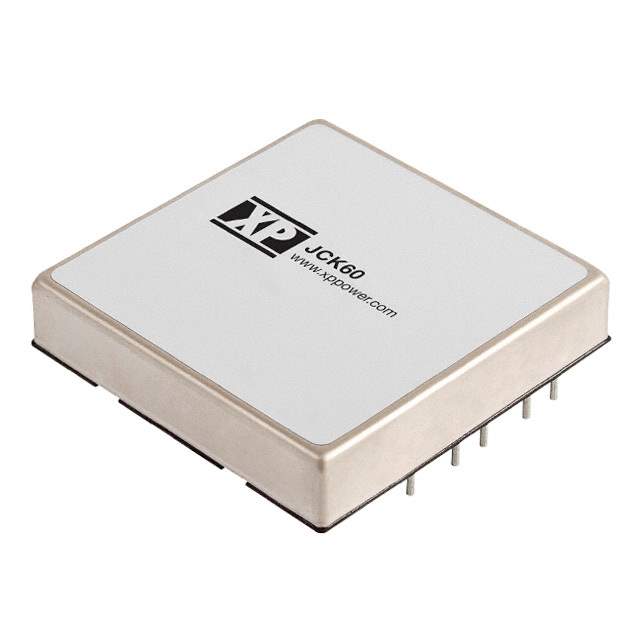

Same model may have multiple batches, images only for reference.

JCK6024S05

Name: JCK6024S05
Brand: XP Power
SKU: 1338886
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JCK6024S05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 60W / Isolated Module DC DC Converter 1 Output 5V 12A 18V - 36V Input
Datasheet	JCK6024S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCK (60W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	12A
Power (Watts)	60 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	92%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	JCK6024
Standard Package	5
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338886-JCK6024S05
Ultra Librarian 3D Model	Ultra Librarian JCK6024S05 CAD Model

Alternative Products

Description

The JCK6024S05 is a DC DC converter that is board mountable and is part of the JCK (60W) series.

Power Rating: 60W
Features: Remote On/Off, OCP, OVP, SCP, UVLO
Package: Tube
Size: 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Application: ITE (Commercial)
Standard Package: 5
Control Feature: Enable, Active High
Voltage Isolation: 1.6 kV
Output: Single
Maximum Current Output: 12A
Voltage Input Range: 18V to 36V
Voltage Output: 5V
Efficiency: 92%
Mounting Type: Through-Hole
Package/Case: 8-DIP Module
Manufacturer: XP Power
Base Product Number: JCK6024
