Same model may have multiple batches, images only for reference.

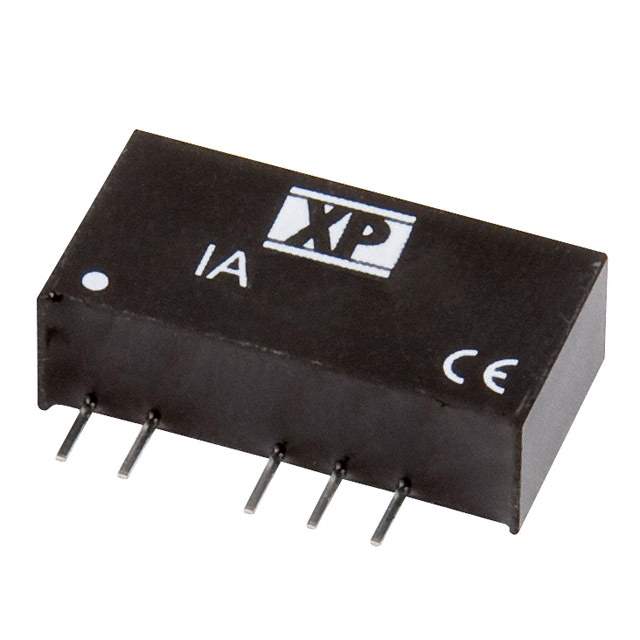

IA0505S Real Image
Same model may have multiple batches, images only for reference.

IA0505S

Part No IA0505S
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA 4.5V - 5.5V Input
Datasheet
IA0505S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series IA (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Type Through Hole
Package / Case 5-SIP Module
Size / Dimension 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm)
Standard Number 62368-1
Base Product Number IA0505
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1340918-IA0505S
Ultra Librarian 3D Model Ultra Librarian IA0505S CAD Model

Description

The IA0505S is a 1W isolated module DC-DC converter from XP Power. XP Power ensures quality design.

  • Application: ITE (Commercial)
  • Standard Package: 20
  • Power Rating: 1W
  • Voltage Isolation: 1 kV
  • Number of Outputs: 2
  • Maximum Current Output: 100mA
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 5V and -5V
  • Efficiency: 74%
  • Package: 5-SIP Module
  • Operating Temperature: -40°C to 85°C
  • Standard Number: 62368-1
