Same model may have multiple batches, images only for reference.

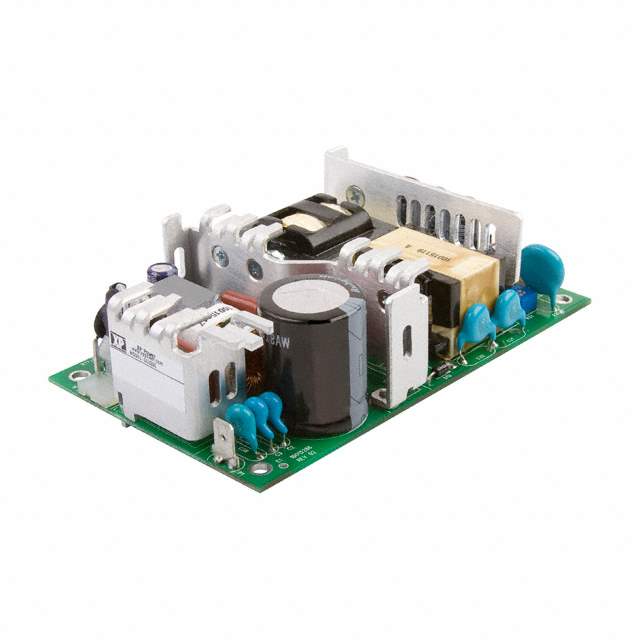

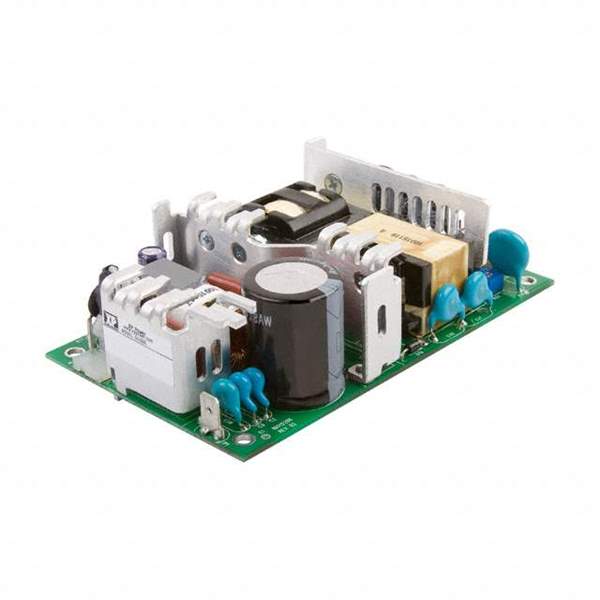

GCS250PS24-R Real Image
Same model may have multiple batches, images only for reference.

GCS250PS24-R

Part No GCS250PS24-R
Manufacturer XP Power
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 180W / Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Datasheet
GCS250PS24-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr XP Power
Series GCS (250W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 7.5 A
Power (Watts) 180W (250W Forced Air)
Applications ITE (Commercial) , Medical
Voltage - Isolation 4 kV
Efficiency 93%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Features Adjustable Output, Remote On/Off, Standby Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm)
Approval Agency CB, CE
Minimum Load Required No
Base Product Number GCS250
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.6018
Win Source Part Number 1351886-GCS250PS24-R
Ultra Librarian 3D Model Ultra Librarian GCS250PS24-R CAD Model

Description

The GCS250PS24-R power supply from XP Power is an external/internal (off-board) AC DC converter with a power output of 180W (250W forced air).

  • Type: External/Internal (Off-Board) AC DC
  • Output Power: 180W (250W Forced Air)
  • Voltage - Input: 85 ~ 264 VAC
  • Voltage - Isolation: 4 kV
  • Efficiency: 93%
  • Features: Adjustable Output, Remote On/Off, Standby Output, Universal Input
  • Series: GCS (250W)
  • Form: Open Frame
  • Package / Case: Box
  • Size / Dimension: 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm)
  • Operating Temperature: -40°C to 70°C (With Derating)
  • Applications: ITE (Commercial), Medical
