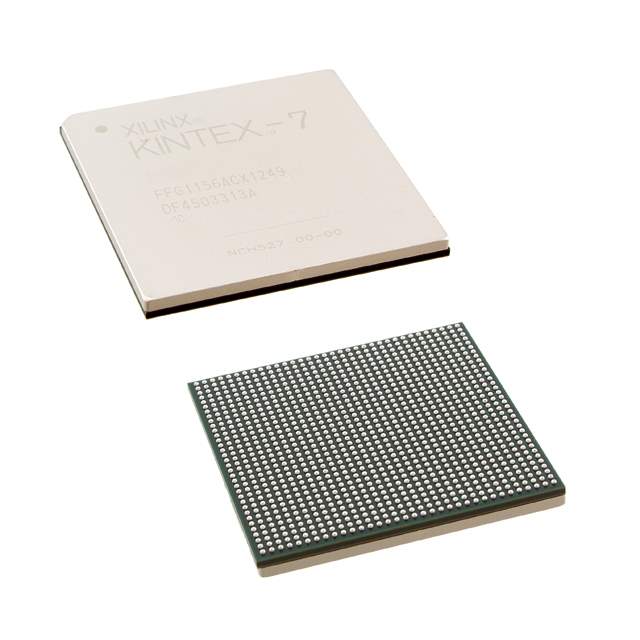

XC7K420T-2FFG1156C Real Image
Same model may have multiple batches, images only for reference.

XC7K420T-2FFG1156C

Part No XC7K420T-2FFG1156C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 400 I/O 1156FCBGA / Kintex®-7 Field Programmable Gate Array (FPGA) IC 400 30781440 416960 1156-BBGA, FCBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>FPGAs (Field Programmable Gate Array)
Manufacturer AMD Xilinx
Packaging Tray
Number of LABs/CLBs 32575
Number of Logic Elements/Cells 416960
Total RAM Bits 30781440
Number of I/O 400
Voltage - Supply 0.97V ~ 1.03V
Mounting Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Case / Package 1156-BBGA, FCBGA
Supplier Device Package 1156-FCBGA (35x35)
Base Product Number XC7K420
RoHS Status ROHS3 Compliant
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Standard Package 1
Win Source Part Number 1318182-XC7K420T-2FFG1156C
Ultra Librarian 3D Model Ultra Librarian XC7K420T-2FFG1156C CAD Model

Description

The AMD Xilinx XC7K420T-2FFG1156C is a Field Programmable Gate Array (FPGA) designed for use in embedded systems.

  • Package: 1156-FCBGA (35x35)
  • I/Os: 400
  • LABs/CLBs: 32575
  • Logic Elements/Cells: 416960
  • Total RAM: 30781440 bits
  • Voltage Range: 0.97V to 1.03V
  • Operating Temperature: 0°C to 85°C (TJ)
  • Mounting: surface mount device
  • Packaging: tray packaging
  • Suitable for use in: various applications, including embedded systems, industrial control systems, and communication systems
