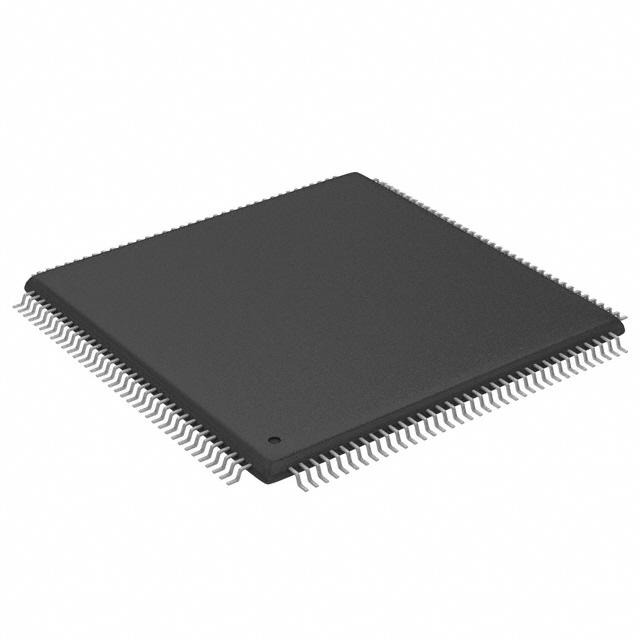

The XCS20XL-4TQ144Q is a Field-Programmable Gate Array (FPGA) from Xilinx's Spartan-XL family. It offers a flexible and cost-effective solution for a wide range of digital logic applications. This particular device comes in a 144-pin TQFP (Thin Quad Flat Pack) package and is speed grade -4, indicating its performance level.

Applications:

• Digital Signal Processing (DSP): Applications such as filtering, transforms, and modulation/demodulation.
• Embedded Systems: Control and processing tasks in embedded systems.
• Data Acquisition: High-speed data capture and processing.
• Image Processing: Video processing and image analysis applications.
• Networking: Implementation of network protocols and interfaces.
• Industrial Control: Precise control and monitoring of industrial processes.
• Telecommunications: Implementation of custom communication protocols and interfaces.

Features:

• Flexible Architecture: Configurable logic blocks (CLBs) and programmable interconnect provide a versatile architecture.
• On-Chip RAM: Embedded block RAM for data storage and buffering.
• Clock Management: Dedicated clock management circuitry for precise timing control.
• I/O Flexibility: Programmable I/O pins to support various interface standards.
• Low Power Consumption: Optimized for low-power operation in portable and battery-powered devices.
• TQFP Package: 144-pin TQFP package for easy surface mounting.
• Speed Grade -4: Indicates a specific performance level within the Spartan-XL family.

Benefits:

• Rapid Prototyping: Quickly implement and test digital logic designs without the need for custom silicon.
• Design Flexibility: Modify designs easily to adapt to changing requirements.
• Cost-Effectiveness: Reduces development costs compared to custom ASIC designs.
• Time-to-Market: Accelerates product development cycles.
• Customization: Tailor designs to specific application needs.
• Reprogrammability: Allows for field upgrades and design modifications.
• Integration: Integrates multiple functions into a single device, reducing board space and system complexity.

Additional Details:

The XCS20XL-4TQ144Q's configuration is typically achieved through a JTAG interface or external configuration memory. The device operates within a specified voltage range and temperature range, detailed in the Xilinx datasheet. Detailed timing characteristics, power consumption figures, and available I/O standards can be found in the official Xilinx documentation for the Spartan-XL family.
