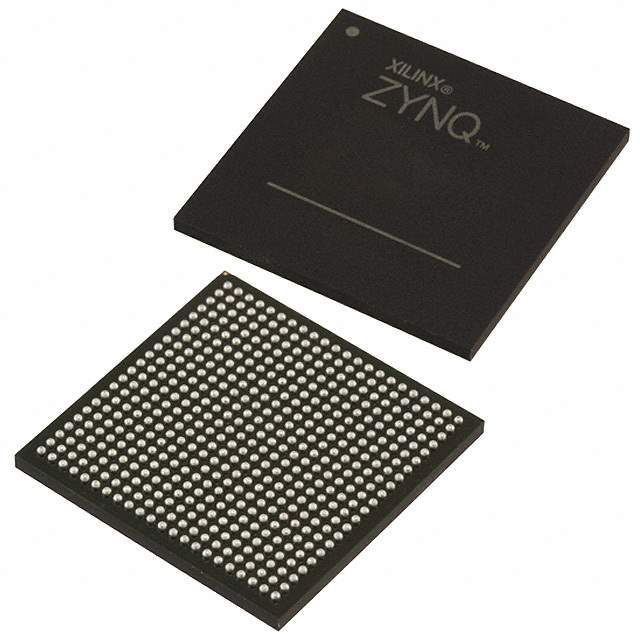

XC7Z015-3CLG485E Real Image
Same model may have multiple batches, images only for reference.

XC7Z015-3CLG485E

Part No XC7Z015-3CLG485E
Manufacturer Xilinx Inc.
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 866MHZ 485CSBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC series Artix™-7 FPGA, 74K Logic Cells 866MHz 484-CSPBGA (19x19)
Manufacturer Xilinx Inc.
Series Zynq®-7000
Package Tray
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
Speed 866MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Peripherals DMA
Number of I/O 130
Operating Temperature Range 0°C ~ 100°C (TJ)
Package 484-LFBGA, CSPBGA
Case / Package 484-CSPBGA (19x19)
Family Name XC7Z015
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.39.0001
Quantity per package 84
Popularity High
Supply and Demand Status Balance
Win Source Part Number 903878-XC7Z015-3CLG485E
Ultra Librarian 3D Model Ultra Librarian XC7Z015-3CLG485E CAD Model

Description

The Xilinx Zynq-7000 series system on chip (SOC) IC is a versatile and powerful electronic component that is designed to deliver exceptional performance and reliability.

  • Processor: dual ARM Cortex-A9 MPCore™ with CoreSight™
  • Logic Cells: 74K
  • Model: XC7Z015-3CLG485E
  • Package: 484-CSPBGA (19x19)
  • Operating Temperature: 0°C to 100°C (TJ)
  • I/O: 130
  • Connectivity Options: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, and UART/USART
  • Production Lead Time: 51 weeks
