Same model may have multiple batches, images only for reference.

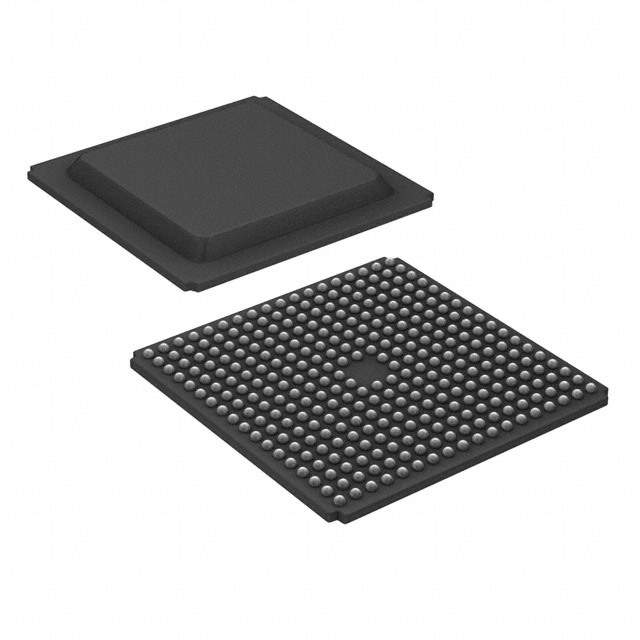

XC3S500E-4FG320C Real Image
Same model may have multiple batches, images only for reference.

XC3S500E-4FG320C

Part No XC3S500E-4FG320C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 232 I/O 320FBGA
Datasheet
XC3S500E-4FG320C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Series Spartan-3E
Number of LABs/CLBs 1164
Number of Logic Elements/Cells 10476
Total RAM Bits 368640
Number of I/O 232
Number of Gates 500000
Operating Supply Voltage 1.14 V ~ 1.26 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 320-BGA
Manufacturer Package 320-FBGA (19x19)
Win Source Part Number 728429-XC3S500E-4FG320C
Popularity Medium
Supply and Demand Status Limited
Family Name XC3S500E
Introduction Date January 05, 1999
ECCN 3A991.d
Country of Origin Philippines, Republic of Korea, Taiwan
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian XC3S500E-4FG320C CAD Model

Description

The XC3S500E-4FG320C, manufactured by Xilinx Inc., is an electronic component.

  • Category: Integrated Circuits (ICs)
  • Series: Spartan-3E
  • Package: 320-BGA
  • Mounting Type: Surface Mountable
  • I/O: 232
  • LABs/CLBs: 1164
  • Logic Elements/Cells: 10476
  • Total RAM: 368640 bits
  • Gates: 500000
  • Voltage: 1.14V to 1.26V
  • Supply and Demand Status: Limited
  • ECCN: 3A991.d
