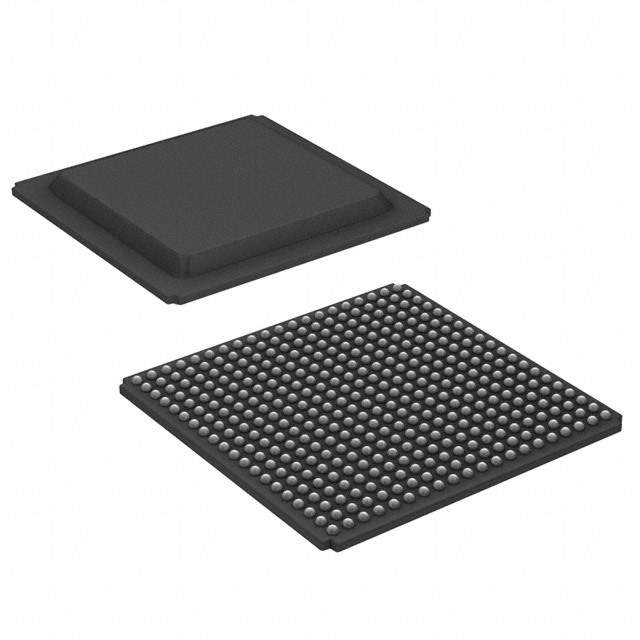

The XC3S400AN-4FG400I is a Field-Programmable Gate Array (FPGA) from the Xilinx Spartan-3AN family. This FPGA is designed to provide a flexible and cost-effective solution for a wide range of digital logic applications. The Spartan-3AN family includes integrated non-volatile flash memory, simplifying configuration and enabling instant-on capabilities. This device provides a combination of logic density, performance, and low power consumption.

Applications:

• Embedded Systems: Suitable for a variety of embedded control and processing applications.
• Industrial Control: Ideal for implementing programmable logic controllers (PLCs) and motor control systems.
• Consumer Electronics: Used in digital TVs, set-top boxes, and gaming consoles.
• Communication Systems: Used for signal processing, data encoding/decoding, and interface control.
• Medical Instrumentation: Employed in medical devices and imaging systems.

Features:

• Logic Cells: Offers a specific number of logic cells, providing resources for complex digital designs. (Approximately 8,064 logic cells)
• Integrated Flash Memory: Includes on-chip non-volatile flash memory for easy configuration.
• Block RAM: Features block RAM for on-chip memory storage.
• Distributed RAM: Provides distributed RAM for smaller memory storage requirements.
• Digital Clock Managers (DCMs): Integrated DCMs for clock frequency synthesis and management.
• I/O Pins: Provides a specific number of I/O pins (400-pin FG package) for interfacing with external devices.
• Operating Voltage: Operates at a defined core voltage for compatibility with digital logic standards.
• Temperature Grade: Available in different temperature grades to suit various operating environments.
• Configuration Options: Supports JTAG configuration.

Benefits:

• Instant-On Capability: Fast configuration due to the integrated flash memory.
• Flexibility: Enables hardware customization and reconfiguration without requiring new hardware.
• Cost-Effective: Provides a cost-efficient alternative to ASICs for low to medium volume production.
• Performance: Delivers high performance for demanding digital logic and signal processing tasks.
• Integration: Integrates memory, clock management, and I/O interfaces on a single chip.

Technical Specifications: The XC3S400AN-4FG400I typically operates at a core voltage of 1.2V. It is packaged in a 400-pin FG package. The inclusion of integrated flash memory distinguishes it from other Spartan-3 family members. 'I' signifies the industrial temperature grade and '-4' the speed grade.
