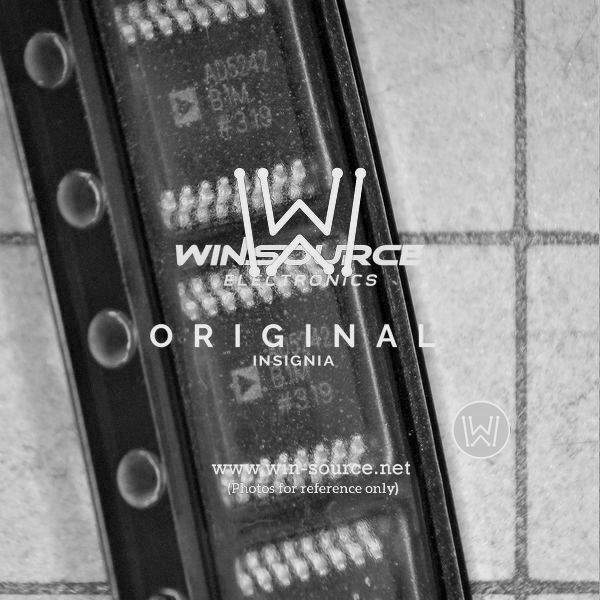

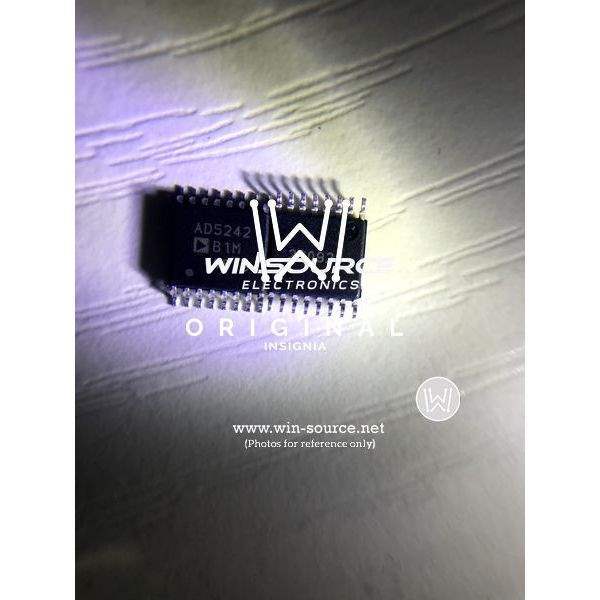

AD5242BRUZ1M - Digital Potentiometer from Analog Devices Inc.

The AD5242BRUZ1M is a high-performance digital potentiometer designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This digital potentiometer offers a unique combination of versatility and precision, making it an ideal solution for applications requiring digitally controlled resistance settings.

Key Features

• Dual 256-Position: The AD5242BRUZ1M features two independent channels with 256 positions each, providing fine granularity for resistance adjustments.
• 1 MΩ End-to-End Resistance: This device offers a substantial end-to-end resistance of 1 megaohm, suitable for various applications that require a high resistance range.
• I²C Compatible Interface: It comes with an I²C-compatible serial interface, which allows for easy integration into most microcontroller-based systems and facilitates simple communication protocols.
• Nonvolatile Memory: The onboard nonvolatile memory (EEPROM) enables the potentiometer to remember the last resistance setting before power-down, ensuring consistent performance across power cycles.
• Low Temperature Coefficient: With a low temperature coefficient, the AD5242BRUZ1M ensures stable performance over a wide temperature range, maintaining accuracy and reliability.
• Compact TSSOP Package: Encased in a compact 14-lead TSSOP (Thin Shrink Small Outline Package), the device is designed for space-constrained applications while offering robust functionality.

Applications

The AD5242BRUZ1M is versatile and can be used in a variety of applications, such as:

• Programmable Filters and Delays
• Adjustable Power Supplies
• Volume Control and Audio Channel Equalization
• Automotive Electronics
• Calibration and Tuning Circuits

With its precision performance and digital control, the AD5242BRUZ1M from Analog Devices Inc. is an excellent choice for designers looking to add digitally controlled variable resistance in their electronic designs. Its robust feature set ensures that it can meet the demands of a wide array of applications, from consumer electronics to industrial systems.
