Same model may have multiple batches, images only for reference.

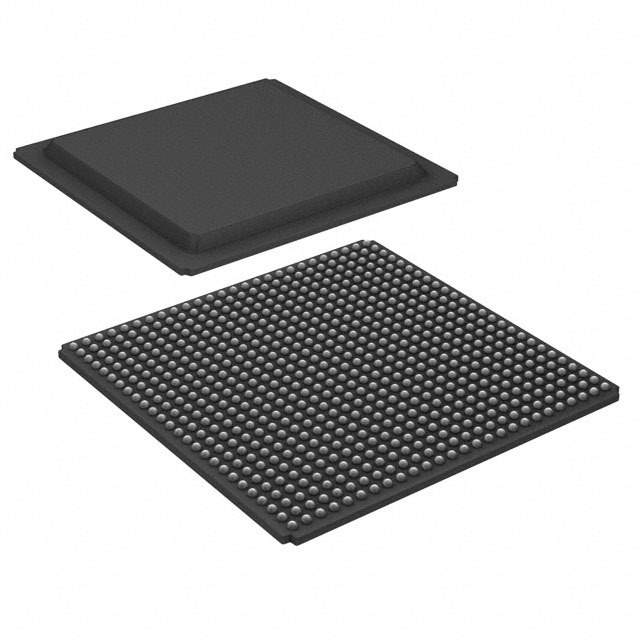

XC3S1500-5FG676C Real Image
Same model may have multiple batches, images only for reference.

XC3S1500-5FG676C

Part No XC3S1500-5FG676C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 487 I/O 676FBGA / FPGA Spartan®-3 Family 1.5M Gates 29952 Cells 725MHz 90nm Technology 1.2V 676-Pin FBGA Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Series Spartan-3
Number of LABs/CLBs 3328
Number of Logic Elements/Cells 29952
Total RAM Bits 589824
Number of I/O 487
Number of Gates 1500000
Operating Supply Voltage 1.14 V ~ 1.26 V
Mounting Sub-Base Mount
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 676-BBGA, FCBGA
Manufacturer Package 676-FCBGA (27x27)
Win Source Part Number 799670-XC3S1500-5FG676C
Popularity Medium
Supply and Demand Status Limited
Family Name XC3S1500
Introduction Date April 09, 2002
ECCN 3A991.d
Country of Origin Philippines, Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian XC3S1500-5FG676C CAD Model

Description

The Xilinx Inc. XC3S1500-5FG676C is a Spartan-3 series IC that operates at a temperature range of 0°C to 85°C.

  • Package: 676-BBGA, FCBGA
  • Mounting Type: sub-base mount
  • Operating Supply Voltage: 1.14V to 1.26V
  • I/O pins: 487
  • LABs/CLBs: 3328
  • Logic Elements/Cells: 29952
  • Total RAM: 589824 bits
  • Gates: 1500000
  • Estimated EOL Date: 2025
  • ECCN: 3A991.d
  • Halogen-Free: Yes
  • Manufactured In: Philippines, Taiwan
