9774025360R

Part No 9774025360R
Manufacturer Wurth Electronics Inc
Catalog Board Spacers, Standoffs

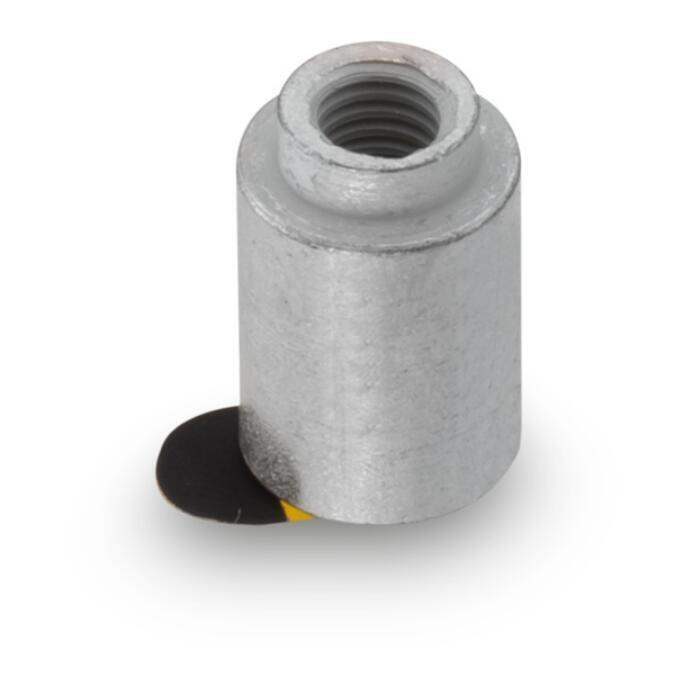

Description ROUND STANDOFF M3 STEEL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203741-9774025360R
Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Hardware, Fasteners, Accessories Board Spacers, Standoffs
Series WA-SMSI
Product Status Active
Type Round Standoff
Threaded/Unthreaded Threaded
Diameter - Inside 0.165" (4.20mm)
Diameter - Outside 0.236" (6.00mm)
Length - Overall 0.098" (2.50mm)
Ultra Librarian 3D Model Ultra Librarian 9774025360R CAD Model

Description

• This mechanical component was designed and manufactured for use in general electronic equipment. • Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network, etc. where higher safety and reliability are especially required and/or if there is the possibility of direct damage or human injury. • Mechanical components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer. • The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions specified in the datasheet are not met, the component surface may be damaged or dissolved. • Do not drop or impact the components, the component may be damaged. • Würth Elektronik products are qualified according to international standards. Würth Elektronik does not warrant any customer qualified product characteristics beyond Würth Elektronik’s specifications, for its validity and sustainability over time. • The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the authority of the customer. All technical specifications for standard products do also apply to customer specific products.
