Same model may have multiple batches, images only for reference.

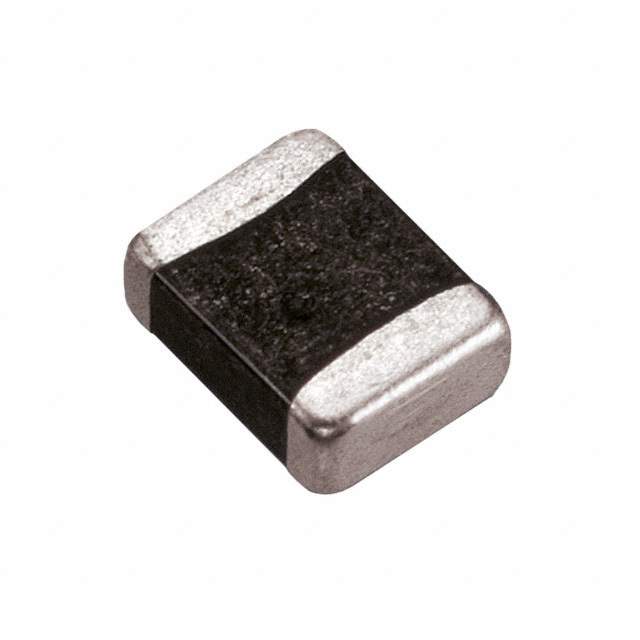

82542140 Real Image
Same model may have multiple batches, images only for reference.

82542140

Part No 82542140
Manufacturer Wurth Electronics Inc
Catalog TVS - Varistors, MOVs
Description VARISTOR 24V 1.2KA 2220 / HIGH SURGE 2220 SMD VARISTOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Part Status Obsolete (End Of Life)
Maximum AC Volts 14V
Maximum DC Volts 18V
Varistor Voltage (Min) 22.08V
Varistor Voltage (Typ) 24V
Varistor Voltage (Maximum) 25.92V
Energy 5.8J
Number of Circuits 1
Capacitance at Frequency 13600pF at 1kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Surface Mount, MLCV
Manufacturer Package 2220 (5750 Metric)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804008-82542140
Ultra Librarian 3D Model Ultra Librarian 82542140 CAD Model

Description

The Würth Elektronik 804008-82542140 is a surface mount metal oxide varistor with a varistor voltage ranging from 22.08V to 25.92V.

  • Maximum AC Voltage: 14V
  • Maximum DC Voltage: 18V
  • Energy Rating: 5.8J
  • Temperature Range: -40°C to 125°C
  • Package: 2220 (5750 Metric)
  • Manufacturer Pack Quantity: 1,000
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (Unlimited)
  • Capacitance @ Frequency: 13600pF @ 1kHz
