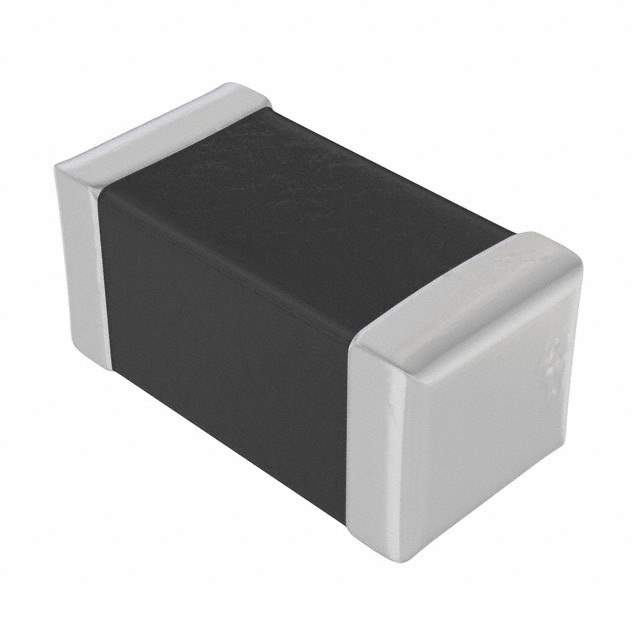

82541140 Real Image
Same model may have multiple batches, images only for reference.

82541140

Part No 82541140
Manufacturer Wurth Electronics Inc
Catalog TVS - Varistors, MOVs
Description VARISTOR 24V 200A 1206 / HIGH SURGE 1206 SMD VARISTOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Maximum AC Volts 14V
Maximum DC Volts 18V
Varistor Voltage (Min) 22.08V
Varistor Voltage (Typ) 24V
Varistor Voltage (Maximum) 25.92V
Current - Surge 200A
Energy 0.50J
Number of Circuits 1
Capacitance at Frequency 1160pF at 1kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Surface Mount, MLCV
Manufacturer Package 1206 (3216 Metric)
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801997-82541140
Ultra Librarian 3D Model Ultra Librarian 82541140 CAD Model

Description

The 82541140 MLCV from Wurth Elektronik is a surface mount MLCV with a single circuit.

  • Varistor Voltage: 24V
  • Minimum Varistor Voltage: 22.08V
  • Maximum Varistor Voltage: 25.92V
  • Surge Current: 200A
  • Maximum AC Voltage: 14V
  • Maximum DC Voltage: 18V
  • Energy: 0.50J
  • Capacitance @ Frequency: 1160pF @ 1kHz
  • Temperature Range: -40 to 125 degrees Celsius
  • Package: 1206
  • Packaging: Reel
  • Manufacturer Pack: 4,000 pieces
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (unlimited)
