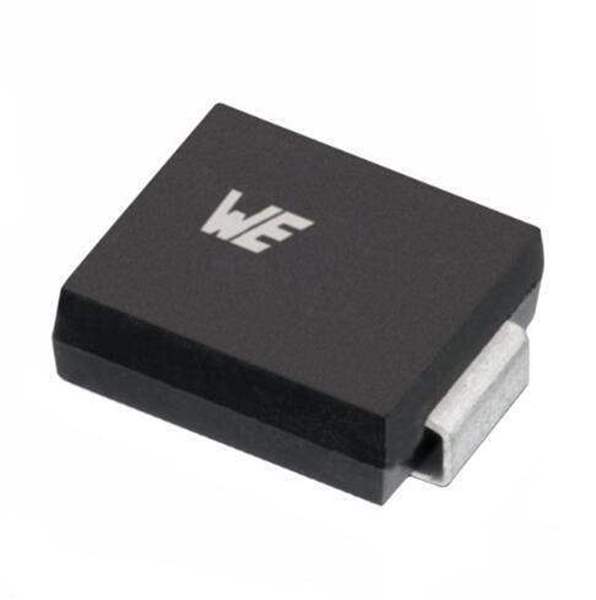

824521401 Würth Elektronik
Same model may have multiple batches, images only for reference.

824521401

Part No 824521401
Manufacturer Wurth Electronics Inc
Catalog TVS - Diodes
Description TVS DIODE 40VWM 64.5VC DO214AA
Datasheet
824521401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Part Status Active
Voltage - Reverse Standoff (Typ) 40V (Max)
Voltage - Breakdown (Min) 46.75V (Typ)
Voltage - Clamping (Max) @ Ipp 64.5V
Current - Peak Pulse (10/1000µs) 9.3A
Power - Peak Pulse 600W
Applications General Purpose
Operating Temperature -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Win Source Part Number WS1304321-824521401
Ultra Librarian 3D Model Ultra Librarian 824521401 CAD Model

Description

64.5V Clamp 9.3A Ipp Tvs Diode Surface Mount DO-214AA
