Same model may have multiple batches, images only for reference.

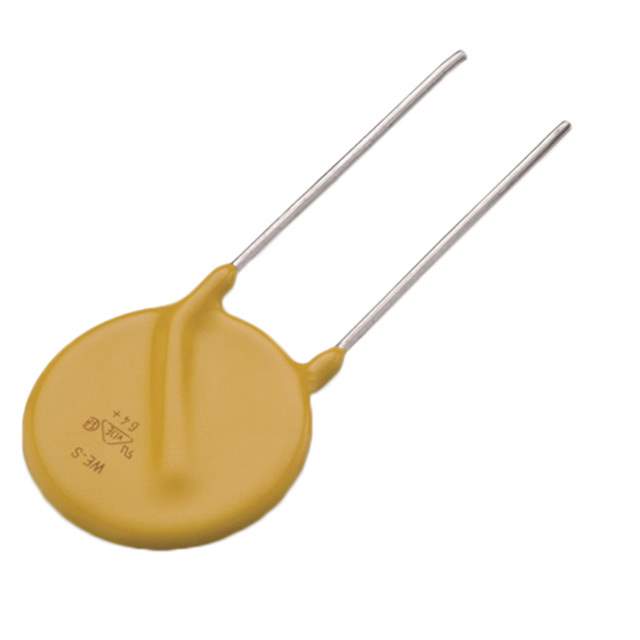

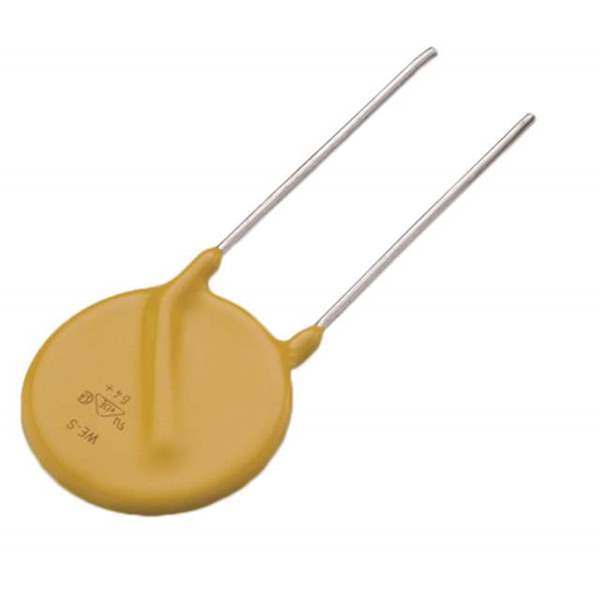

820543001 Real Image
Same model may have multiple batches, images only for reference.

820543001

Part No 820543001
Manufacturer Wurth Electronics Inc
Catalog TVS - Varistors, MOVs
Description DISK VARISTOR STANDARD 14MM; 30V
Datasheet
820543001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 23 Weeks
Features 47 V 1 kA Varistor 1 Circuit Through Hole Disc 14mm
Manufacturer Wurth Electronics Inc
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Through Hole
Package Disc 14mm
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Part Number 732-13276-2, 732-13276-1, 732-13276-6
Quantity per package 750
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908486-820543001
Ultra Librarian 3D Model Ultra Librarian 820543001 CAD Model

Description

The Wurth Electronics Inc 908486-820543001 varistor is an excellent circuit protection component with a maximum voltage rating of 47 V and a maximum current rating of 1 kA.

  • Voltage Rating (Max): 47 V
  • Current Rating (Max): 1 kA
  • Package: Through-Hole Disc 14mm
  • Package Options: Reel (750 units)
  • Operating Temperature: -40°C to 85°C (TA)
  • REACH: Unaffected
  • ECCN: EAR99
  • Production Lead Time: 23 weeks
  • Supply and Demand: Balanced
