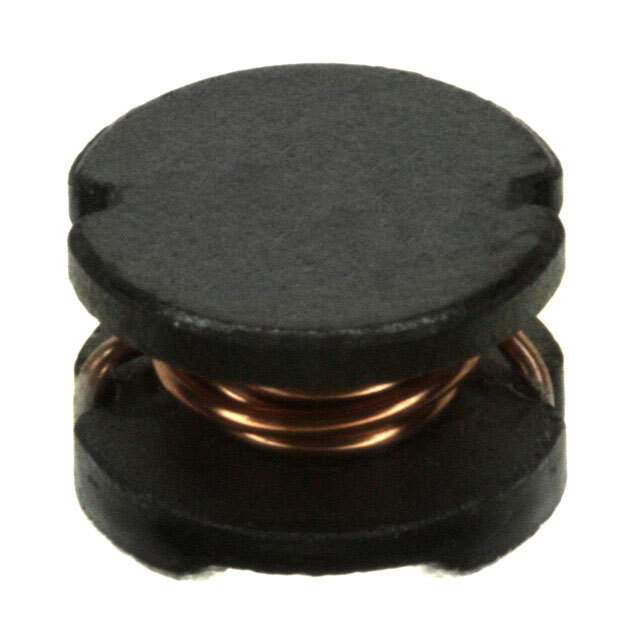

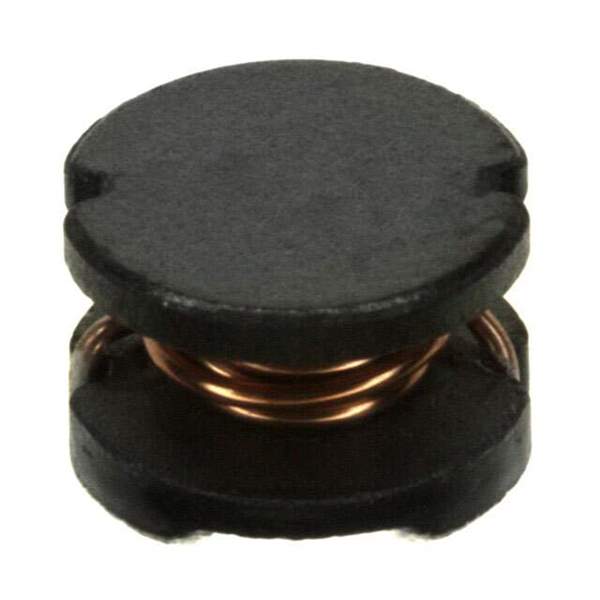

784774156 Real Image
Same model may have multiple batches, images only for reference.

784774156

Part No 784774156
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 56UH 770MA 420MOHM SMD
Datasheet
784774156 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 51 Weeks
Features 56 µH Unshielded Wirewound Inductor 770 mA 420mOhm Max Nonstandard
Manufacturer Wurth Electronics Inc
Series WE-PD2A
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
Case / Package 5848
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-6839-6, 732-6839-2, 732-6839-1
Quantity per package 1500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858234-784774156
Ultra Librarian 3D Model Ultra Librarian 784774156 CAD Model

Description

The Wurth Electronics Inc WE-PD2A is a series of 56 μH unshielded wirewound inductors.

  • Maximum DC Resistance: 420mOhm
  • Current Rating: 770mA
  • Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • Pack Quantity: 1500
  • Popularity: Medium
  • Supply and Demand Status: Limited
