Same model may have multiple batches, images only for reference.

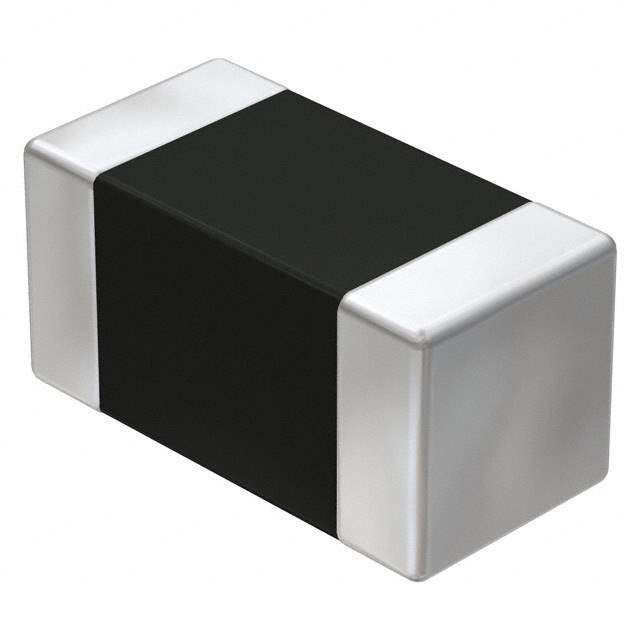

74479763215 Real Image
Same model may have multiple batches, images only for reference.

74479763215

Part No 74479763215
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 1.5UH 850MA 287.5 MOHM / 1.5 µH Shielded Multilayer Inductor 850 mA 287.5mOhm Max 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Würth Elektronik
Series WE-PMI
Package Tape & Reel
Type Multilayer
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 850 mA
Current - Saturation (Isat) 500mA
Shielding Shielded
DC Resistance (DCR) 287.5mOhm Max
Q @ Freq 12 @ 1MHz
Frequency - Self Resonant 100MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1340354-74479763215
Ultra Librarian 3D Model Ultra Librarian 74479763215 CAD Model

Description

The WE-PMI multilayer fixed inductor is a shielded component that is ideal for surface mount applications. Bold the product name (e.g., BAV99S,135 → WE-PMI) and manufacturer (e.g., Nexperia USA Inc. → N/A).

  • Shielding: Shielded
  • Mounting Type: Surface Mount
  • Size/Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • Q @ Freq: 12 @ 1MHz
  • Frequency-Self Resonant: 100MHz
  • DC Resistance: 287.5mOhm Max
  • Current Rating: 850 mA
  • Saturation Current: 500mA
  • Temperature Range: -40°C ~ 125°C
  • AEC-Q200: Yes
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
