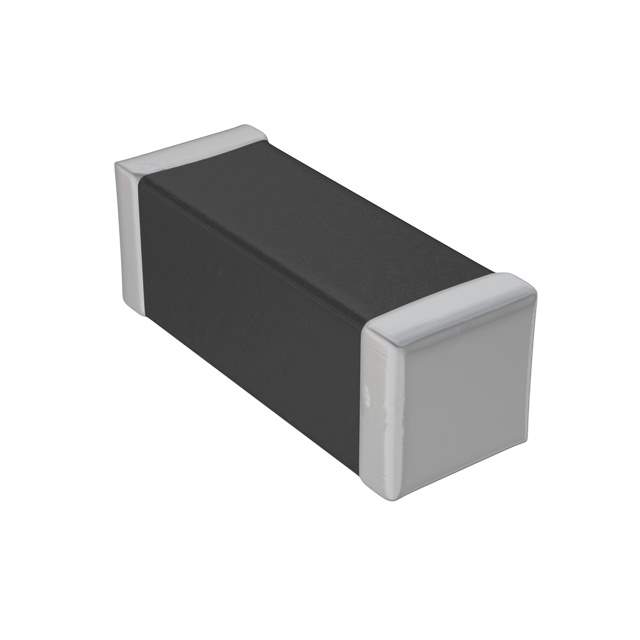

782963820 Real Image
Same model may have multiple batches, images only for reference.

782963820

Part No 782963820
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 82 OHM 1806 1LN / 82 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 1806 (4516 Metric) 3.5A 20mOhm
Datasheet
782963820 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Würth Elektronik
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 82 Ohms @ 100 MHz
Current Rating (Max) 3.5A
DC Resistance (DCR) (Max) 20mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Case / Package 1806 (4516 Metric)
Mounting Surface Mount
Height (Max) 0.071" (1.80mm)
Size / Dimension 0.177" L x 0.063" W (4.50mm x 1.60mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-6720-1,732-6720-2,732-6720-6
Standard Package 2,000
Win Source Part Number 1328114-782963820
Ultra Librarian 3D Model Ultra Librarian 782963820 CAD Model

Description

The Würth Elektronik 1328114-782963820 is a signal line ferrite bead and chip filter that measures 0.177 inches in length and 0.063 inches in width.

  • Impedance: 82 Ohms @ 100 MHz
  • Current Rating: 3.5A
  • DC Resistance (DCR): 20mOhm max
  • Operating Temperature Range: -55°C to 125°C
  • Case/Package: 1806 (4516 Metric)
  • ROHS3 Compliant: Yes
