Same model may have multiple batches, images only for reference.

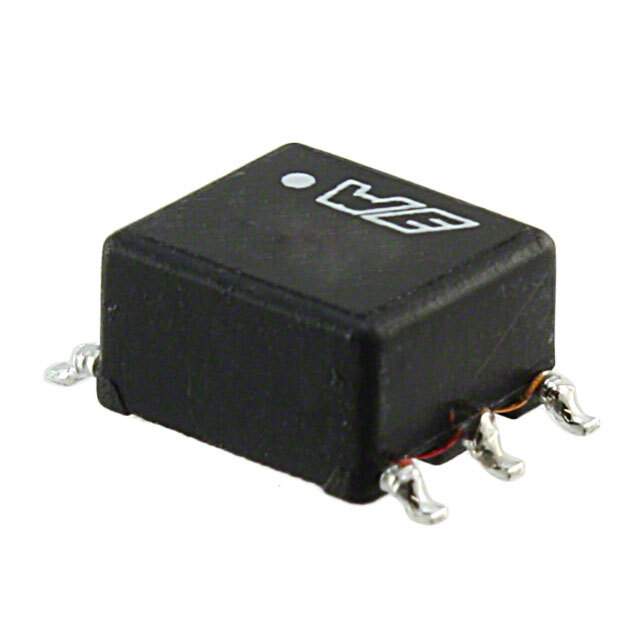

760390012 Real Image
Same model may have multiple batches, images only for reference.

760390012

Part No 760390012
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description TRANSFORMER 475UH SMD
Datasheet
760390012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 34 Weeks
Features Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 3125Vrms Isolation 10kHz Surface Mount
Manufacturer Wurth Electronics Inc
Series WE-PP, MID-PPTI
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 732-4456-1, 732-4456-2, 732-4456-6
Quantity per package 1200
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858148-760390012
Ultra Librarian 3D Model Ultra Librarian 760390012 CAD Model

Description

The Wurth Electronics Inc 858148-760390012 is a transformer with forward, push-pull converters for DC/DC converters SMPS transformer 3125Vrms isolation 10kHz surface mount.

  • Series: WE-PP, MID-PPTI
  • Operating Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Limited
  • Quantity per Package: 1200
  • Estimated Production Lead Time: 34 weeks
  • REACH Status: Unaffected
