Same model may have multiple batches, images only for reference.

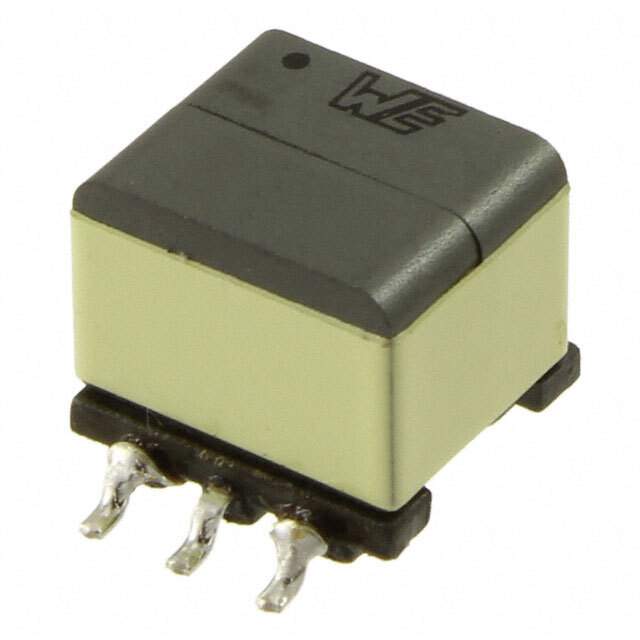

750312559 Real Image
Same model may have multiple batches, images only for reference.

750312559

Part No 750312559
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description FLYBACK TRANSFORMER WE-FB LT8300
Datasheet
750312559 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 20 Weeks
Features Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 70kHz Surface Mount
Manufacturer Wurth Electronics Inc
Series WE-FB, MID-FLYLT
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 1297-1021-6, 1297-1021-2, 1297-1021-1
Quantity per package 400
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908356-750312559
Ultra Librarian 3D Model Ultra Librarian 750312559 CAD Model

Description

The component from Wurth Electronics Inc, with the Win Source Part Number 908356-750312559, is a surface mount transformer that comes in a reel packaging.

  • Mounting: Surface Mount
  • Packaging: Reel
  • Series: WE-FB, MID-FLYLT
  • Application: Flyback converters for DC/DC converters
  • Isolation: 1500Vrms
  • Temperature Range: -40 degrees Celsius to 125 degrees Celsius
  • Frequency: 70kHz
  • Category: Transformers
