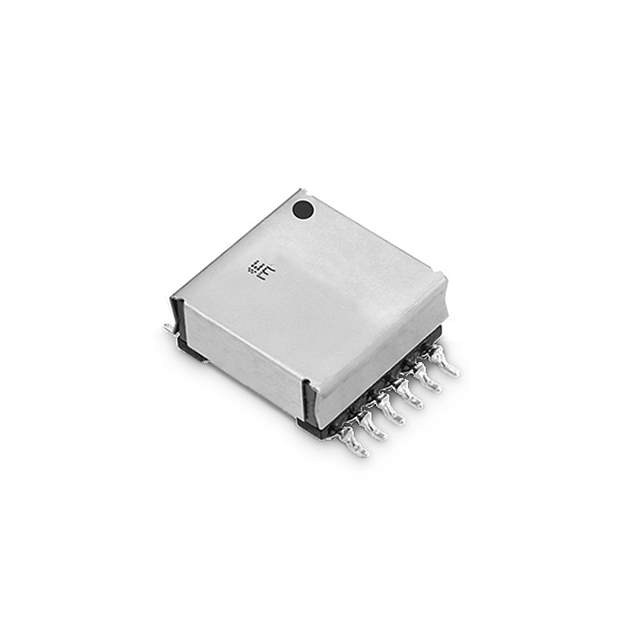

749196507 Real Image1 749196507 Real Image2
Same model may have multiple batches, images only for reference.
749196507 Real Image1 749196507 Real Image2
749196507 Real Image1 749196507 Real Image2
Same model may have multiple batches, images only for reference.

749196507

Part No 749196507
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description WE-FLEX FLEXIBLE TRANSFORMER FOR / Flexible For For DC/DC Converters SMPS Transformer 1500Vrms Isolation Surface Mount
Datasheet
749196507 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Switching Converter, SMPS Transformers
Mfr Wurth Electronics Inc
Series WE-FLEX
Package Tape & Reel
Type For DC/DC Converters
Applications Flexible
Intended Chipset -
Chipset Manufacturer -
Voltage - Primary -
Voltage - Auxiliary -
Voltage - Isolation 1500Vrms
Inductance @ Frequency 87.1µH @ 100kHz
Frequency -
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.827" L x 0.846" W (21.01mm x 21.49mm)
Height - Seated (Max) 0.472" (11.99mm)
Footprint 1.161" L x 0.846" W (29.49mm x 21.49mm)
Style -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 120 pcs
Win Source Part Number 1381148-749196507
Ultra Librarian 3D Model Ultra Librarian 749196507 CAD Model

Description

The WE-FLEX Switching Converter is a versatile electronic component designed for DC/DC converters.

  • Size: 0.827" L x 0.846" W (21.01mm x 21.49mm)
  • Inductance: 87.1µH @ 100kHz
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Package: Tape & Reel
  • Standard Package: 120 pcs
  • REACH: Unaffected
  • ECCN: EAR99
  • Moisture Sensitivity Level: 1 (Unlimited)
