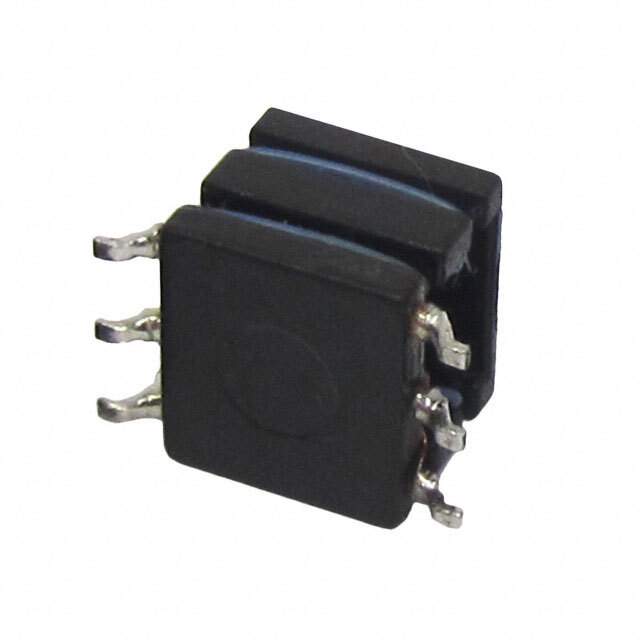

750313734 Real Image
Same model may have multiple batches, images only for reference.

750313734

Part No 750313734
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description TRANSFORMER | TRANSFORMER SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Wurth Electronics Midcom
Packaging Reel
Type For DC/DC Converters
Applications Forward, Push-Pull Converters
Intended Chipset SN6501
Chipset Manufacturer Texas Instruments
Voltage - Isolation 5000Vrms
Inductance at Frequency 340μH at 100kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.360" L x 0.315" W (9.14mm x 8.00mm)
Height - Seated (Maximum) 0.305" (7.75mm)
Footprint 0.360" L x 0.500" W (9.14mm x 12.70mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133607-750313734
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 750313734 CAD Model

Description

The Wurth Electronics Midcom transformer is designed for DC/DC converters with applications in forward and push-pull converters.

  • Voltage Isolation: 5000Vrms
  • Operating Temperature: -40°C to 125°C
  • Intended for Use With: SN6501 chipset from Texas Instruments
  • Footprint: 0.360" L x 0.500" W (9.14mm x 12.70mm)
  • Mounting: SMD technology
  • Inductance: 340μH @ 100kHz
  • Package: Reel
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
