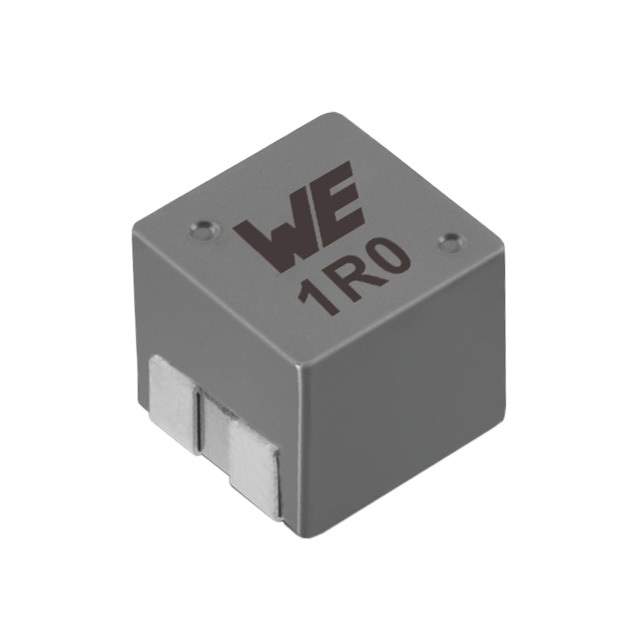

7448990082 Real Image1 7448990082 Real Image2
Same model may have multiple batches, images only for reference.
7448990082 Real Image1 7448990082 Real Image2
7448990082 Real Image1 7448990082 Real Image2
Same model may have multiple batches, images only for reference.

7448990082

Part No 7448990082
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 8.2UH SMD / Shielded 2 Coil Inductor Array Inductance - Connected in Series 8.2 µH Inductance - Connected in Parallel 63mOhm DC Resistance (DCR) - Parallel 4.8 A Nonstandard
Datasheet
7448990082 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Wurth Electronics Inc
Series WE-MCRI
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 8.2 µH
Tolerance ±20%
Current Rating - Parallel 4.8 A
Current Saturation - Parallel 18.5 A
DC Resistance (DCR) - Parallel 63mOhm
DC Resistance (DCR) - Series -
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.453" L x 0.394" W (11.50mm x 10.00mm)
Height 0.354" (9.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 300 pcs
Win Source Part Number 1381137-7448990082
Ultra Librarian 3D Model Ultra Librarian 7448990082 CAD Model

Description

The WE-MCRI inductor array is a shielded component designed for use in signal transformers.

  • Size: 0.453" L x 0.394" W (11.50mm x 10.00mm)
  • Height: 0.354" (9.00mm)
  • Tolerance: ±20%
  • Inductance (Parallel): 8.2 μH
  • Current Rating (Parallel): 4.8 A
  • Current Saturation (Parallel): 18.5 A
  • DC Resistance (DCR) (Parallel): 63mOhm
  • Package: Tape & Reel
  • Pieces per Package: 300
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
