Same model may have multiple batches, images only for reference.

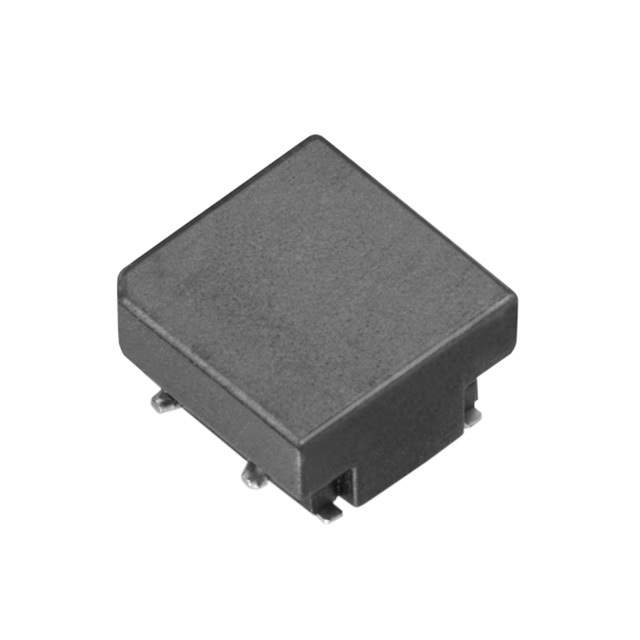

7448845100 Real Image
Same model may have multiple batches, images only for reference.

7448845100

Part No 7448845100
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCTOR ARRAY 2 COIL 10UH SMD / Shielded 2 Coil Inductor Array Inductance - Connected in Series 10 µH Inductance - Connected in Parallel 270mOhm DC Resistance (DCR) - Parallel 1.2 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Arrays, Signal Transformers
Mfr Würth Elektronik
Series WE-CPIB HV
Package Tape & Reel
Product Status Obsolete
Number of Coils 2
Inductance - Connected In Parallel 10 µH
Tolerance ±20%
Current Rating - Parallel 1.2 A
Current Saturation - Parallel 1.55 A
DC Resistance (DCR) - Parallel 270mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height 0.118" (3.00mm)
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1351252-7448845100
Ultra Librarian 3D Model Ultra Librarian 7448845100 CAD Model

Description

The WE-CPIB HV series inductors are designed to provide a reliable and secure connection for printed circuit boards from Würth Elektronik.

  • Shielding: Shielded
  • Size: 0.197 inches L x 0.197 inches W (5.00mm x 5.00mm)
  • Height: 0.118 inches (3.00mm)
  • Number of Coils: 2
  • Inductance: 10µH
  • Current Rating: 1.2A
  • Current Saturation: 1.55A
  • Tolerance: ±20%
  • Mounting Type: Surface Mount
  • Package/Case: Nonstandard
  • Operating Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Standard Package: 2000
