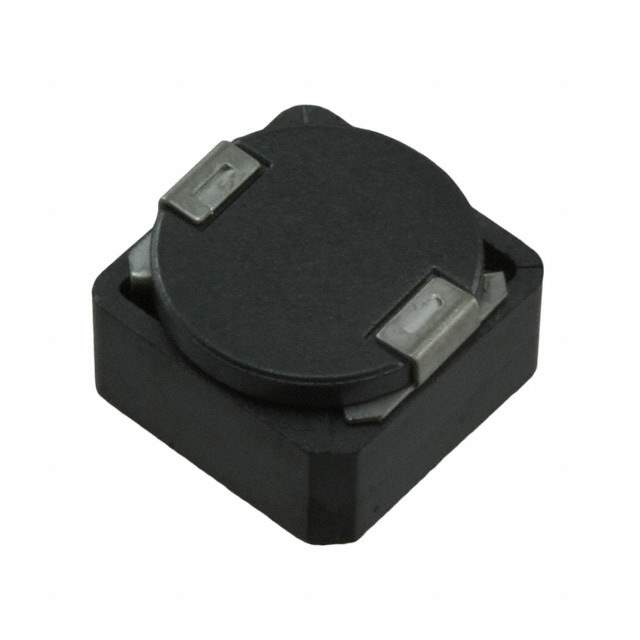

7447798241 Real Image
Same model may have multiple batches, images only for reference.

7447798241

Part No 7447798241
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PDF | FIXED IND 24UH 4.5A 39.5 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 24μH
Tolerance ±20%
Current Rating (Amps) 4.5A
Current - Saturation 3.25A
Shielding Shielded
DC Resistance (DCR) 39.5mOhm Max
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Maximum) 0.252" (6.40mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130103-7447798241
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7447798241 CAD Model

Description

The 1130103-7447798241 from Wurth Electronics is a shielded, SMD wirewound inductor that is designed for use in inductors, coils, and chokes.

  • Inductance: 24μH
  • Tolerance: ±20%
  • Saturation Current: 3.25A
  • Self-Resonant Frequency: 16MHz
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1
  • Seated Height: 0.252" (6.40mm)
  • Maximum DC Resistance: 39.5mOhm
  • Temperature Range: Limited
