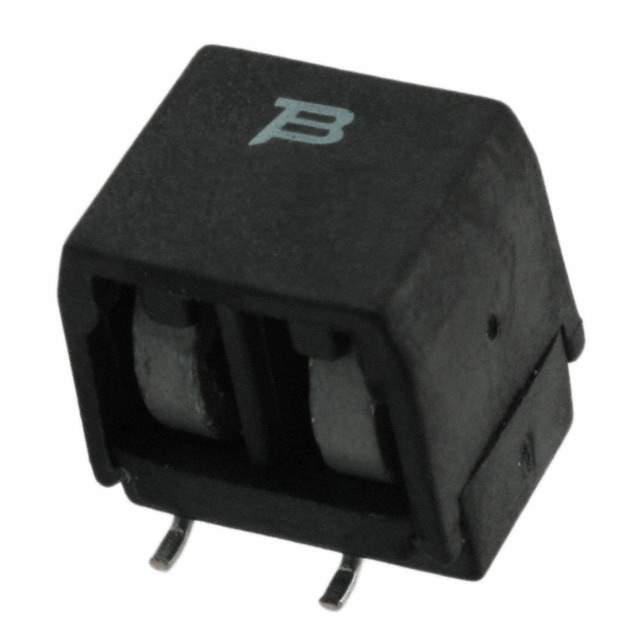

CMF-SDP10A-2 Real Image
Same model may have multiple batches, images only for reference.

CMF-SDP10A-2

Part No CMF-SDP10A-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description CPTC FUSE RESET .150A HOLD SMD
Datasheet
CMF-SDP10A-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Ceramic
Voltage - Max 230V (250V Int)
Current - Max 1A
Current - Hold (Ih) (Max) 150mA
Current - Trip (It) 360mA
Time to Trip 3.8s
Resistance - 25°C (Typ) 10 Ohm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Dimension 0.344" L x 0.283" W (8.75mm x 7.20mm)
Thickness (Max) 0.402" (10.20mm)
Win Source Part Number 1029599-CMF-SDP10A-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMF-SDP10A-2 CAD Model

Description

The Bourns Inc. CMF-SDP10A-2 series ceramic fuse is a surface mount type of fuse with a voltage rating of 230V (250V Int) and a current rating of 1 A.

  • Voltage Rating: 230V (250V Int)
  • Current Rating: 1 A
  • Thickness: 0.402" (10.20mm)
  • Packaging: Reel - TR
  • Current Hold (Ih) (max): 150mA
  • Current Trip (It): 360mA
  • Time to Trip: 3.8s
  • Temperature Range: -40°C to 125°C
  • Package/Case: SMD (SMT)
  • Mounting: SMD (SMT)
