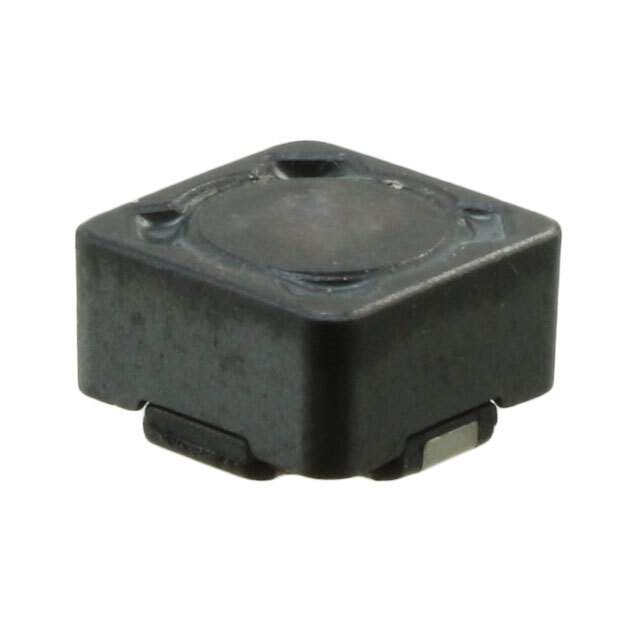

744777004

Name: 744777004
Brand: Wurth Electronics Inc
SKU: 857565
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744777004
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 3.2A 40 MOHM SMD / 4.7 μH Shielded Drum Core, Wirewound Inductor 3.2 A 40mOhm Max Nonstandard
Datasheet	744777004 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PD
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	3.2 A
Current - Saturation (Isat)	4A
Shielding	Shielded
DC Resistance (DCR)	40mOhm Max
Frequency - Self Resonant	37MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	7345
Size / Dimension	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max)	0.177" (4.50mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857565-744777004
Ultra Librarian 3D Model	Ultra Librarian 744777004 CAD Model

Alternative Products

Description

The WE-PD series fixed inductor is a drum core, wirewound inductor designed for various applications.

Package Size: 0.287" L x 0.287" W (7.30mm x 7.30mm)
Seated Height: 0.177" (4.50mm)
Shielded: Shielded
Inductance: 4.7μH
Tolerance: ±20%
Temperature Range: -40°C to 125°C
DC Resistance (DCR): 40mOhm max
AEC-Q200 Rated: Yes
Current Rating: 3.2A
Self-Resonant Frequency: 37MHz
Manufacturer: Wurth Electronics Inc
Standard Package: 1,000 pcs
