Same model may have multiple batches, images only for reference.

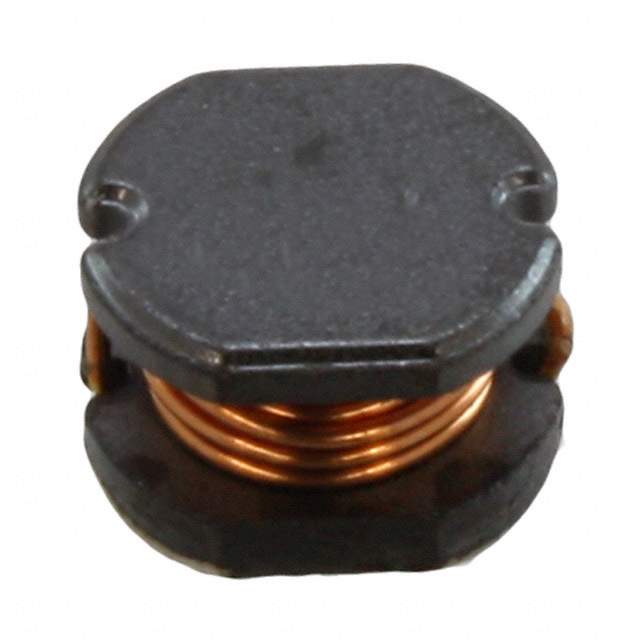

744775147 Real Image
Same model may have multiple batches, images only for reference.

744775147

Part No 744775147
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 1.17A 180MOHM SMD
Datasheet
744775147 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD2
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 1.17 A
Current - Saturation (Isat) 1.24A
Shielding Unshielded
DC Resistance (DCR) 180mOhm Max
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857558-744775147
Ultra Librarian 3D Model Ultra Librarian 744775147 CAD Model

Description

The WE-PD2 series from Wurth Electronics Inc is a drum core, wirewound inductor with an unshielded design.

  • Size: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Height: 0.217" (5.50mm) seated
  • Inductance: 47 μH
  • Tolerance: ±10%
  • DC Resistance (DCR): 180mOhm max
  • Current Rating: 1.17A
  • Operating Temperature: -40°C to 125°C
  • Package: Nonstandard
  • Packaging: Tape & Reel
  • Core Material: Ferrite
  • Mounting Type: Surface Mount
  • Self-Resonant Frequency: 12MHz
