Same model may have multiple batches, images only for reference.

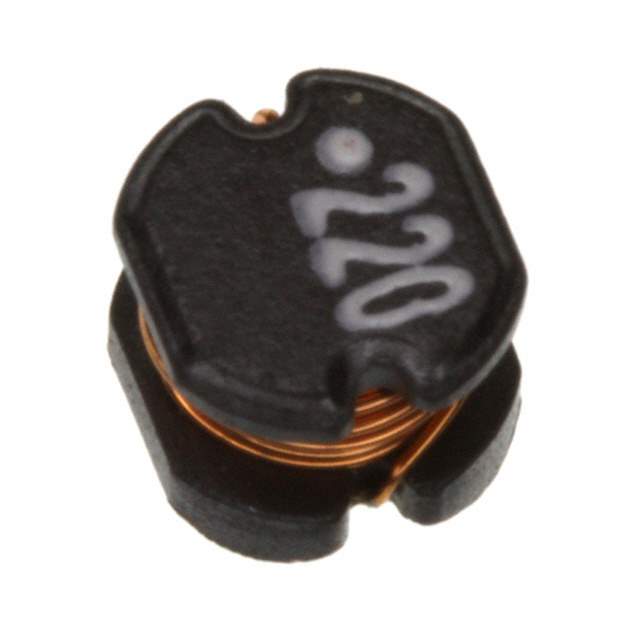

744773122 Real Image
Same model may have multiple batches, images only for reference.

744773122

Part No 744773122
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER CHOKE WE-PD2 | FIXED IND 22UH 1A 370 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 1A
Current - Saturation 1.22A
Shielding Unshielded
DC Resistance (DCR) 370mOhm Max
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Maximum) 0.138" (3.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130067-744773122
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744773122 CAD Model

Description

The 1130067-744773122 is a wirewound type inductor manufactured by Wurth Electronics Inc.

  • Packaging: reel
  • Mounting Style: SMD
  • Shielding: unshielded
  • Inductance: 22μH
  • Tolerance: ±20%
  • Core Material: ferrite
  • Saturation Current: 1.22A
  • Self-Resonant Frequency: 20MHz
  • Category: inductor, coil, choke
  • DC Resistance: 370mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Height: 0.138" (3.50mm)
  • Popularity: medium
  • Supply and Demand Status: balance
