Same model may have multiple batches, images only for reference.

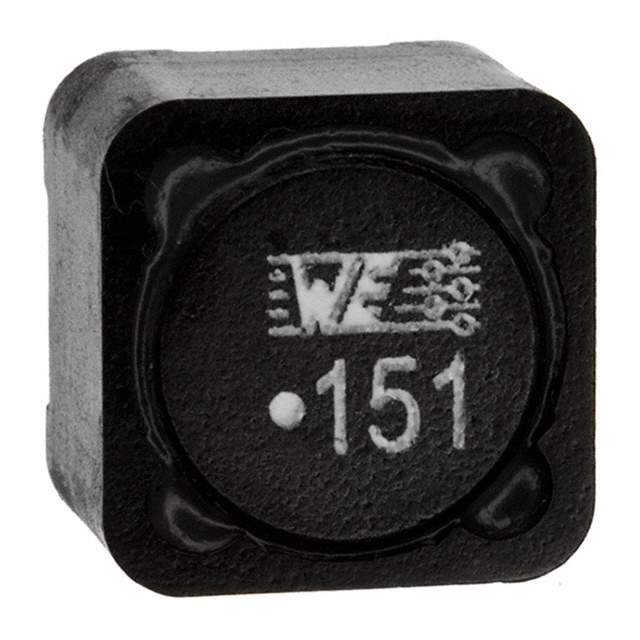

7447709151 Real Image
Same model may have multiple batches, images only for reference.

7447709151

Part No 7447709151
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 150UH 2.1A 200MOHM SMD / 150 µH Shielded Drum Core, Wirewound Inductor 2.1 A 200mOhm Max Nonstandard
Datasheet
7447709151 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±20%
Current Rating (Amps) 2.1 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 200mOhm Max
Frequency - Self Resonant 3.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-1695-2,732-1695-1,732-1695-6
Standard Package 250
Win Source Part Number 1327660-7447709151
Ultra Librarian 3D Model Ultra Librarian 7447709151 CAD Model

Description

The 7447709151 is a fixed inductor from Würth Elektronik with a 150μH inductance and a tolerance of ±20%.

  • Inductance: 150μH
  • Tolerance: ±20%
  • Case/Package: Nonstandard
  • Mounting: Surface Mount
  • Shielding: Shielded
  • Size: 0.472” L x 0.472” W (12.00mm x 12.00mm)
  • Height: 0.394” (10.00mm)
  • DC Resistance (DCR): 200mOhm max
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Current Rating: 2.1A
  • Current Saturation: 2.7A
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
