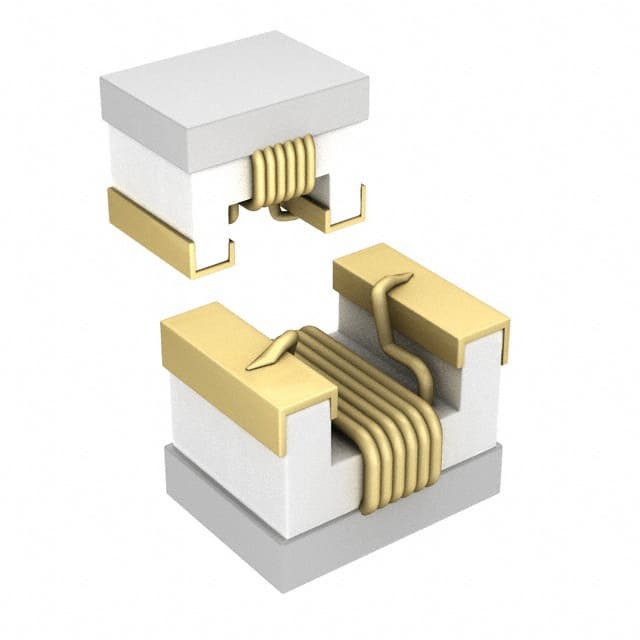

Same model may have multiple batches, images only for reference.
744760156A
Same model may have multiple batches, images only for reference.

744760156A

Part No 744760156A
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 56NH 500MA 150MOHM SMD
Datasheet
744760156A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-KI
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 56 nH
Tolerance ±5%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 150mOhm Max
Q @ Freq 60 @ 500MHz
Frequency - Self Resonant 1.6GHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 200 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.055" (1.40mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857482-744760156A
Ultra Librarian 3D Model Ultra Librarian 744760156A CAD Model

Description

The WE-KI is a fixed inductor from Wurth Electronics Inc. This drum core, wirewound inductor is packaged in tape and reel format.

  • Series: WE-KI
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Inductance: 56nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 150mOhm
  • Operating Temperature: -40°C to 125°C
