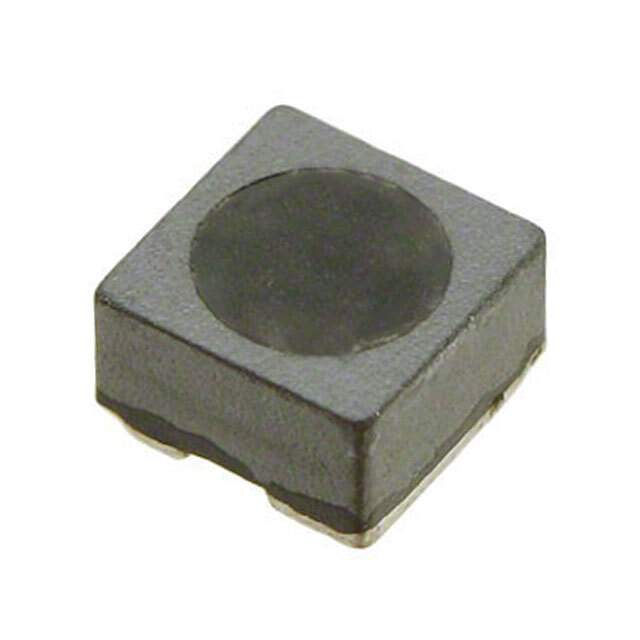

Same model may have multiple batches, images only for reference.

7440430027

Name: 7440430027
Brand: Wurth Electronics Inc
SKU: 857239
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7440430027
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.7UH 2.35A 30MOHM SMD
Datasheet	7440430027 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.7 µH
Tolerance	±30%
Current Rating (Amps)	2.35 A
Current - Saturation (Isat)	1.95A
Shielding	Shielded
DC Resistance (DCR)	30mOhm Max
Frequency - Self Resonant	80MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	1919 (4848 Metric)
Size / Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857239-7440430027
Ultra Librarian 3D Model	Ultra Librarian 7440430027 CAD Model

Alternative Products

Description

The WE-TPC series is a drum core, wirewound inductor designed for various applications.

Size: 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height: 0.118" (3.00mm)
Inductance: 2.7 µH
Tolerance: ±30%
Shielding: Shielding feature
Package: Tape & reel
Standard Package: 500 pcs
Current Rating: 2.35A
DC Resistance (DCR): 30mOhm
Operating Temperature Range: -40°C to 125°C
Manufacturer: Wurth Electronics Inc
Status: Active
