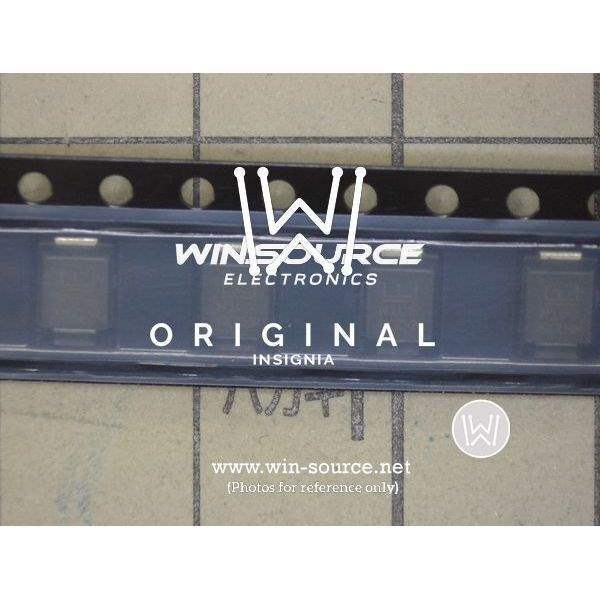

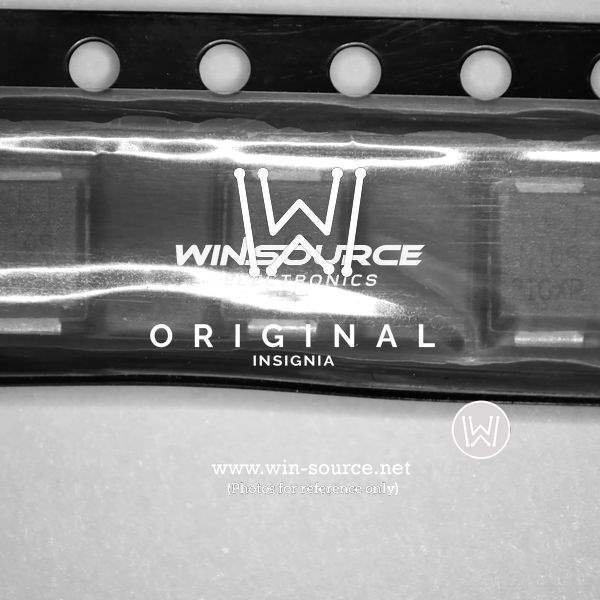

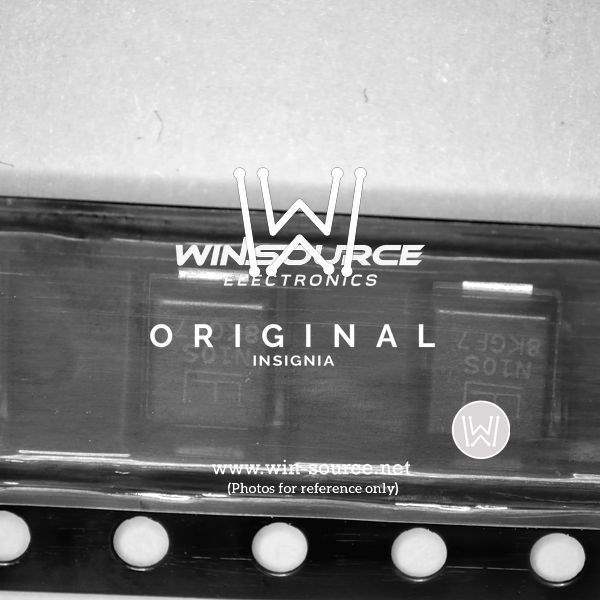

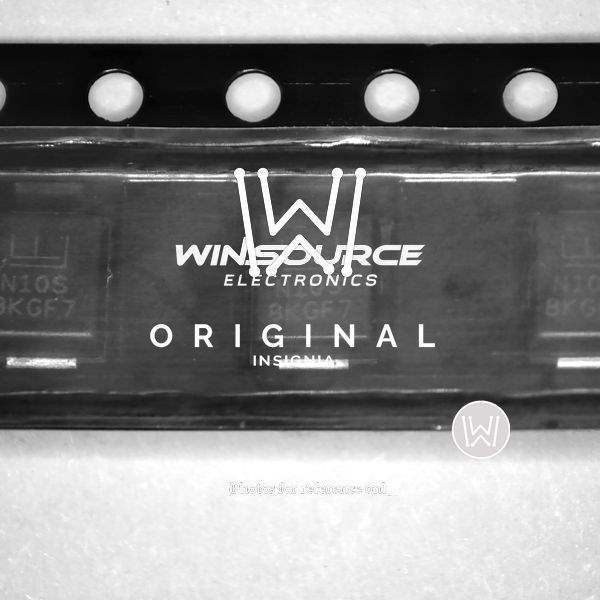

1KSMB39CA Real Image 1KSMB39CA real image 1KSMB39CA Real Image1 1KSMB39CA Real Image2 1KSMB39CA Real Image3 1KSMB39CA Real Image4
Same model may have multiple batches, images only for reference.
1KSMB39CA Real Image 1KSMB39CA real image 1KSMB39CA Real Image1 1KSMB39CA Real Image2 1KSMB39CA Real Image3 1KSMB39CA Real Image4
1KSMB39CA Real Image 1KSMB39CA real image 1KSMB39CA Real Image1 1KSMB39CA Real Image2 1KSMB39CA Real Image3 1KSMB39CA Real Image4
Same model may have multiple batches, images only for reference.

1KSMB39CA

Part No 1KSMB39CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 33.3VWM 53.9VC SMD
Datasheet
1KSMB39CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 33.3V
Minimum Breakdown Voltage 37.1V
Max Clamping Voltage 53.9V
Peak Pulse Current(Ippm) 18.6A
Power Dissipation - Pd 1000W (1kW)
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AA (SMBJ)
Win Source Part Number 1001968-1KSMB39CA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1KSMB39CA CAD Model

Description

The Littelfuse Inc. 1001968-1KSMB39CA is a Zener diode designed for general purpose applications. It is mounted on a surface-mount device (SMD) and has a bidirectional channel.

  • Stand-off Voltage: 33.3V
  • Minimum Breakdown Voltage: 37.1V
  • Maximum Clamping Voltage: 53.9V
  • Peak Pulse Current(Ippm): 18.6A
  • Power Dissipation - Pd: 1000W (1kW)
  • Package: DO-214AA (SMBJ)
  • Status: active
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Recommended For: use in circuit protection.
