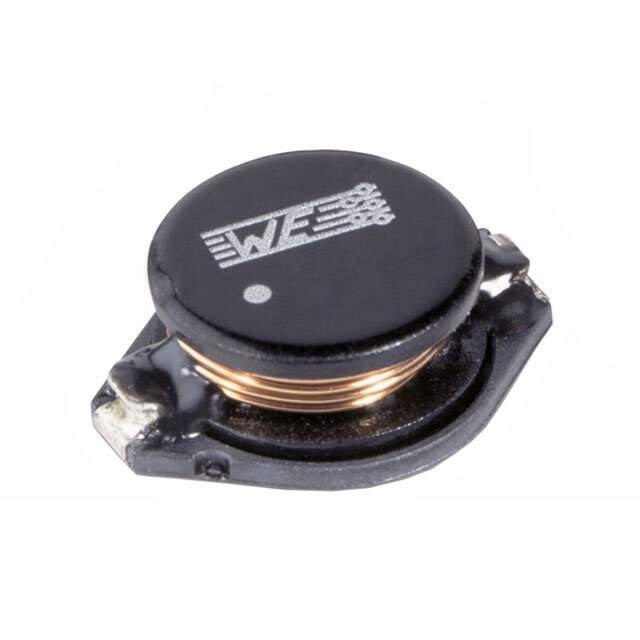

Same model may have multiple batches, images only for reference.

74455215

Name: 74455215
Brand: Wurth Electronics Inc
SKU: 1341105
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74455215
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 150UH 250MA 2 OHM SMD / 150 µH Unshielded Drum Core, Wirewound Inductor 250 mA 2Ohm Max Nonstandard
Datasheet	74455215 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Würth Elektronik
Series	WE-PD4
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	150 µH
Tolerance	±20%
Current Rating (Amps)	250 mA
Current - Saturation (Isat)	270mA
Shielding	Unshielded
DC Resistance (DCR)	2Ohm Max
Frequency - Self Resonant	6MHz
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.260" L x 0.173" W (6.60mm x 4.40mm)
Height - Seated (Max)	0.114" (2.90mm)
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1341105-74455215
Ultra Librarian 3D Model	Ultra Librarian 74455215 CAD Model

Alternative Products

Description

The 1341105-74455215 is a drum core, wirewound fixed inductor from the WE-PD4 series.

Inductance: 150 µH
Tolerance: ±20%
Package: tape and reel
Standard Package: 500
Size: 0.260" L x 0.173" W (6.60mm x 4.40mm)
Height (Seated): 0.114" (2.90mm)
Operating Temperature: -40°C to 100°C
Current Rating: 250 mA
DC Resistance (DCR): 2Ohm max
Inductance Frequency - Test: 100 kHz
Q @ Freq: None
Supplier Device Package: None
Package or Case: nonstandard
MSL: 1 (unlimited)
HTSUS: 8504.50.8000
Manufacturer: Würth Elektronik
