Same model may have multiple batches, images only for reference.

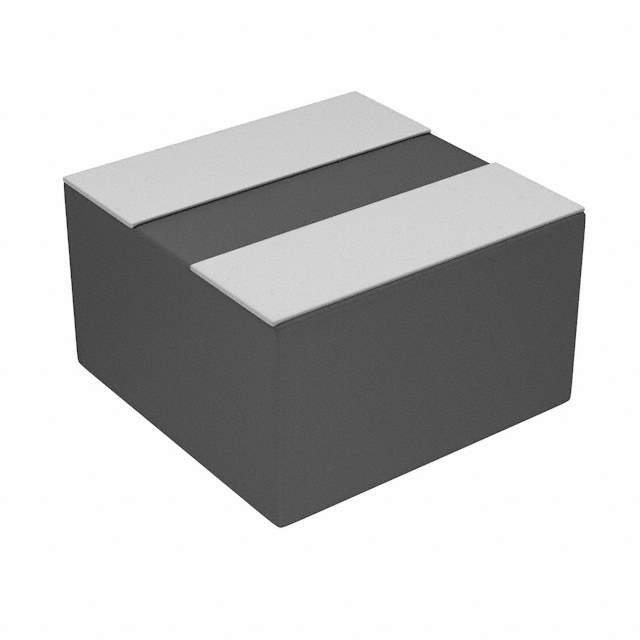

74438336022 Real Image
Same model may have multiple batches, images only for reference.

74438336022

Part No 74438336022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.4A 80 MOHM SMD
Datasheet
74438336022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-MAPI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 4.3A
Shielding Shielded
DC Resistance (DCR) 80mOhm Max
Frequency - Self Resonant 42MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package 3020
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857441-74438336022
Ultra Librarian 3D Model Ultra Librarian 74438336022 CAD Model

Description

The WE-MAPI is a molded inductor from Wurth Electronics Inc.

  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Shielded: Yes
  • Inductance: 2.2 μH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.079" (2.00mm)
  • DC Resistance (DCR): 80mOhm Max
  • Mounting Type: Surface Mount
  • Package / Case: 1212 (3030 Metric)
  • Operating Temperature: -40°C to 125°C
  • Current: 2.4 A
  • AEC-Q200 Rated: Yes
