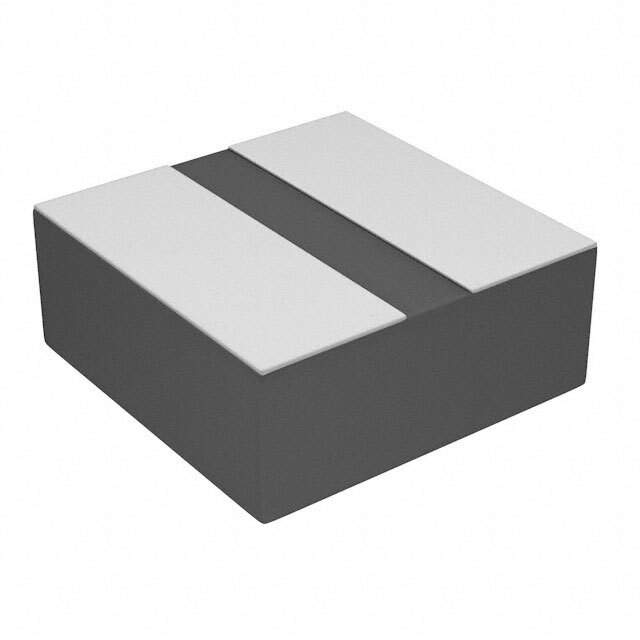

74438333047 Real Image
Same model may have multiple batches, images only for reference.

74438333047

Part No 74438333047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 900MA 409MOHM SM
Datasheet
74438333047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-MAPI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal Composite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 2.4A
Shielding Shielded
DC Resistance (DCR) 409mOhm Max
Frequency - Self Resonant 35MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package 3012
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857437-74438333047
Ultra Librarian 3D Model Ultra Librarian 74438333047 CAD Model

Description

The WE-MAPI series is a molded fixed inductor designed for electronic applications that require high performance and reliability.

  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Inductance: 4.7 µH (±20%)
  • Core Material: Metal composite
  • DC Resistance (DCR): 409mOhm Max
  • Current Rating: 900 mA
  • Saturation Current (Isat): 2.4A
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: 1212 (3030 Metric)
