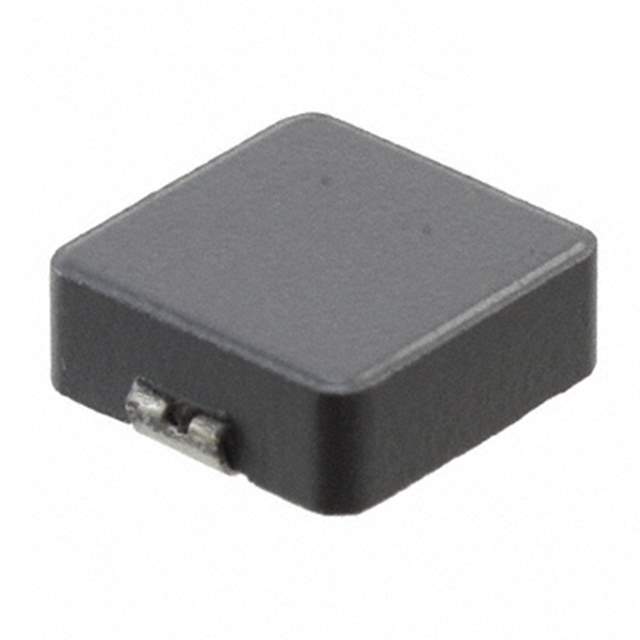

74437358022 Real Image
Same model may have multiple batches, images only for reference.

74437358022

Part No 74437358022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 10A 9.41MOHM SMD
Datasheet
74437358022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LHMI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Iron Powder
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 10 A
Current - Saturation (Isat) 22A
Shielding Shielded
DC Resistance (DCR) 9.41mOhm Max
Frequency - Self Resonant 29MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 8040
Size / Dimension 0.362" L x 0.335" W (9.20mm x 8.50mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857417-74437358022
Ultra Librarian 3D Model Ultra Librarian 74437358022 CAD Model

Description

The WE-LHMI series from Wurth Electronics Inc is a molded, shielded inductor with a size of 0.362" L x 0.335" W (9.20mm x 8.50mm).

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.157" (4.00mm)
  • DC Resistance (DCR): 9.41mOhm Max
  • Current Rating: 10 A
  • Temperature Range: -40°C to 125°C
  • Core Material: Iron Powder
  • Self-Resonant Frequency: 29MHz
  • Mounting Type: Surface Mount
  • Package: Nonstandard
