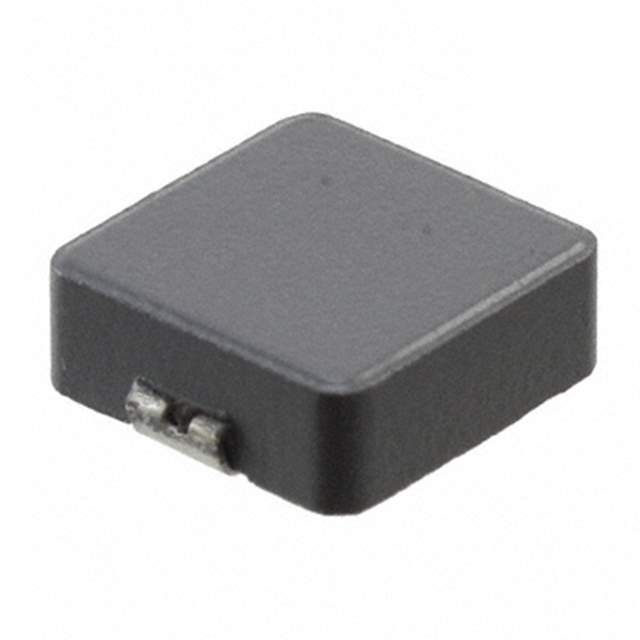

744373580068 Real Image
Same model may have multiple batches, images only for reference.

744373580068

Part No 744373580068
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 680NH 15A 3.22MOHM SMD
Datasheet
744373580068 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LHMI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Iron Powder
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 15 A
Current - Saturation (Isat) 28A
Shielding Shielded
DC Resistance (DCR) 3.22mOhm Max
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 8040
Size / Dimension 0.362" L x 0.335" W (9.20mm x 8.50mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857415-744373580068
Ultra Librarian 3D Model Ultra Librarian 744373580068 CAD Model

Description

The WE-LHMI series from Wurth Electronics Inc offers a molded fixed inductor with a shielded design.

  • Size: 0.362" L x 0.335" W (9.20mm x 8.50mm)
  • Inductance: 680 nH
  • Seated Height: 0.157" (4.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 3.22mOhm Max
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Current Rating: 15 A
  • Current Saturation (Isat): 28A
