Same model may have multiple batches, images only for reference.

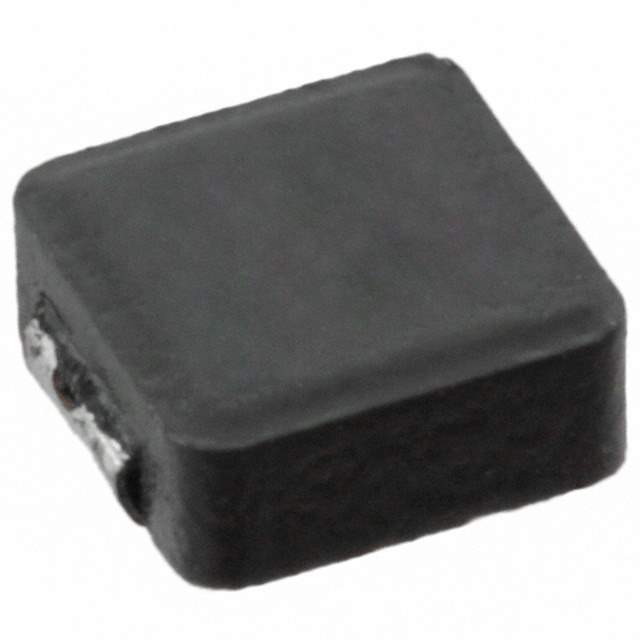

74437324220 Real Image
Same model may have multiple batches, images only for reference.

74437324220

Part No 74437324220
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 22UH 1A 500 MOHM SMD
Datasheet
74437324220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LHMI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Iron Powder
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 2A
Shielding Shielded
DC Resistance (DCR) 500mOhm Max
Frequency - Self Resonant 14MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1136137-74437324220
Ultra Librarian 3D Model Ultra Librarian 74437324220 CAD Model

Description

The WE-LHMI series of fixed inductors from Wurth Electronics Inc is an excellent choice for your electronic projects.

  • Type: Molded
  • Shielding: Yes
  • Size and Dimension: 0.175" L x 0.160" W (4.45mm x 4.06mm)
  • Inductance: 22 µH
  • Maximum Seated Height: 0.079" (2.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 500mOhm Max
  • Current Rating: Up to 1 A
  • Temperature Range: -40°C to 125°C
  • AEC-Q200 Rated: Yes
  • Mounting Type: Surface Mount
  • Package/Case: Nonstandard
