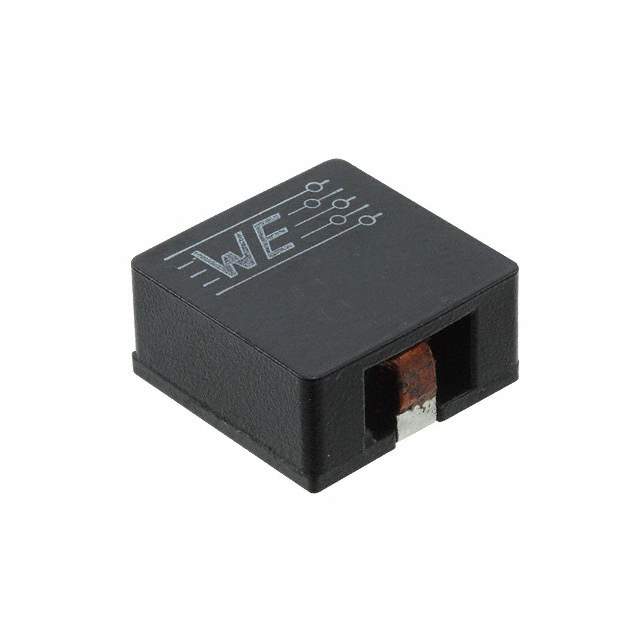

Same model may have multiple batches, images only for reference.

74435586800

Name: 74435586800
Brand: Wurth Electronics Inc
SKU: 857374
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	74435586800
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 68UH 7.5A 27.3MOHM SMD
Datasheet	74435586800 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	68 µH
Tolerance	±20%
Current Rating (Amps)	7.5 A
Current - Saturation (Isat)	9.5A
Shielding	Shielded
DC Resistance (DCR)	27.3mOhm
Frequency - Self Resonant	5MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2212
Size / Dimension	0.886" L x 0.866" W (22.50mm x 22.00mm)
Height - Seated (Max)	0.488" (12.40mm)
Standard Package	120 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857374-74435586800
Ultra Librarian 3D Model	Ultra Librarian 74435586800 CAD Model

Alternative Products

Description

The WE-HCI series from Wurth Electronics Inc offers a high-inductance fixed inductor for various electronic applications.

Package: Tape & Reel
Size: 0.886" L x 0.866" W (22.50mm x 22.00mm)
Seated Height: 0.488" (12.40mm)
Inductance: 68 µH ±20%
DC Resistance (DCR): 27.3mOhm
Current Rating: 7.5A
Operating Temperature: -40°C to 125°C
Core: Manganese Zinc Ferrite (MnZn)
