Same model may have multiple batches, images only for reference.

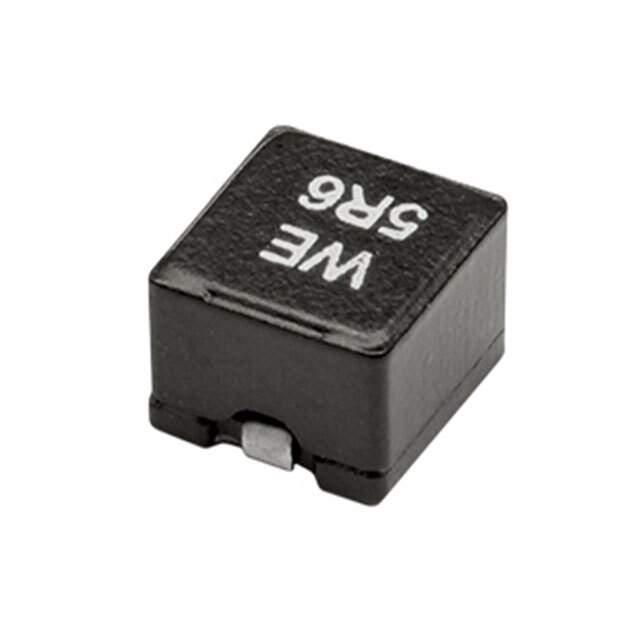

744316330 Real Image
Same model may have multiple batches, images only for reference.

744316330

Part No 744316330
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 3.3UH 5.75A 18.5 MOHM / 3.3 µH Shielded Wirewound Inductor 5.75 A 18.5mOhm 2-SMD
Datasheet
744316330 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Wirewound
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 5.75 A
Current - Saturation (Isat) 5.8A
Shielding Shielded
DC Resistance (DCR) 18.5mOhm
Frequency - Self Resonant 66MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 2-SMD
Supplier Device Package 5040
Size / Dimension 0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max) 0.169" (4.30mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-6180-1,732-6180-2,732-6180-6
Standard Package 1,500
Win Source Part Number 1327745-744316330
Ultra Librarian 3D Model Ultra Librarian 744316330 CAD Model

Description

The Würth Elektronik 1327745-744316330 is a shielded wirewound fixed inductor with an inductance of 3.3 µH and a tolerance of ±20%.

  • DC Resistance: 18.5mOhm
  • Current Rating: 5.75A
  • AEC-Q200 Rated: Yes
  • Self-Resonant Frequency: 66MHz
  • Temperature Range: -40°C to 150°C
  • Designed for: surface mount
  • Package: 2-SMD
  • Supplier Device Package: 5040
  • REACH Unaffected: Yes
  • Commonly used in: electronic circuits to store energy in a magnetic field
