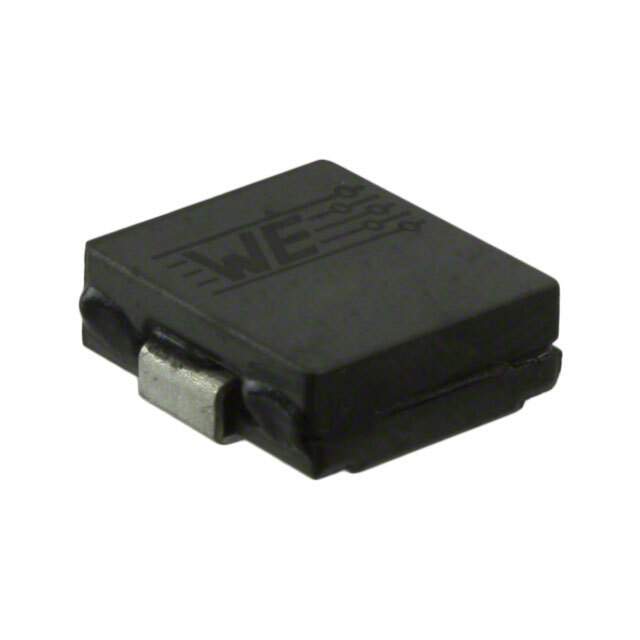

744304022 Real Image
Same model may have multiple batches, images only for reference.

744304022

Part No 744304022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-HCM | FIXED IND 220NH 24A 0.17 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Tape and Reel
Type Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 220nH
Tolerance ±20%
Current Rating (Amps) 24A
Current - Saturation 23A
Shielding Shielded
DC Resistance (DCR) 0.17mOhm
Frequency - Self Resonant 70MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.453" L x 0.465" W (11.50mm x 11.80mm)
Height - Seated (Maximum) 0.161" (4.10mm)
Manufacturer Pack Quantity 700
MSL Level 1 (Unlimited)
Win Source Part Number 1129935-744304022
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744304022 CAD Model

Description

The Wurth Electronics Inc. 1129935-744304022 is a shielded wirewound inductor with an inductance of 220nH and current saturation of 23A.

  • Inductance: 220nH
  • Current Saturation: 23A
  • DC Resistance: 0.17mOhm
  • Self-Resonant Frequency: 70MHz
  • Suitable for: Use in various electronic equipment such as switch mode power supplies, DC-DC converters, and LED drivers
  • Packaging: Tape and reel
  • Mounting: SMD
  • Win Source part number: 1129935-744304022
