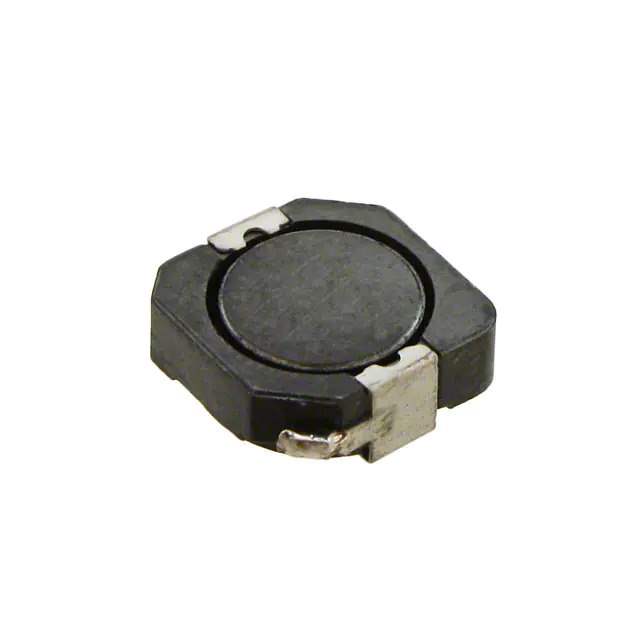

PF0560.104NLT Real Image
Same model may have multiple batches, images only for reference.

PF0560.104NLT

Part No PF0560.104NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 100UH 1.25A 304MOHM SM
Datasheet
PF0560.104NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PF0560NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 100 µH
Tolerance ±25%
Current Rating (Amps) 1.25 A
Current - Saturation (Isat) 1.35A
Shielding Shielded
DC Resistance (DCR) 304mOhm Max
Frequency - Self Resonant 6.6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.409" L x 0.406" W (10.40mm x 10.30mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 620 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 654413-PF0560.104NLT
Ultra Librarian 3D Model Ultra Librarian PF0560.104NLT CAD Model

Description

The 654413-PF0560.104NLT is a wirewound fixed inductor from the PF0560NL series by Pulse.

  • Type: shielded inductor
  • Size: 0.409" L x 0.406" W (10.40mm x 10.30mm)
  • Inductance: 100 µH
  • Tolerance: ±25%
  • Height: 0.157" (4.00mm)
  • DCR: 304mOhm
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 1.25A
  • Package: surface mount
  • Package/Case: nonstandard
  • Status: active
  • Package Quantity: 620 pieces
  • Frequency Self-Resonant: 6.6MHz
  • REACH: unaffected
