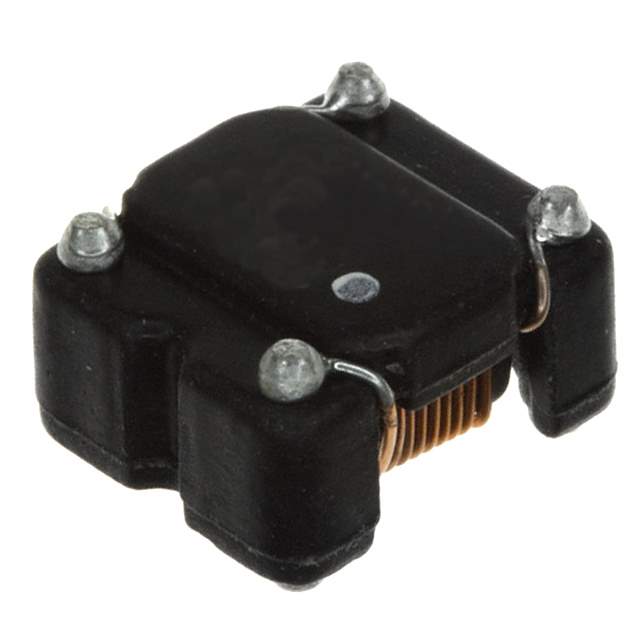

744272472 Real Image
Same model may have multiple batches, images only for reference.

744272472

Part No 744272472
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description COMMON MODE SMD LINE FILTER WE-SL5 | CMC 4.7MH 350MA 2LN 13 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Wurth Electronics Inc.
Packaging Cut Tape (CT)
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 13 kOhms at 1MHz
Inductance at Frequency 4.7mH at 100kHz
Current Rating (Maximum) 350mA
DC Resistance (DCR) (Maximum) 720mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Maximum) 0.256" (6.50mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129932-744272472
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744272472 CAD Model

Description

The Wurth Electronics Inc. Signal Line Filter is a high-quality filter that is designed to offer reliable performance.

  • DC Resistance: 720mOhm
  • Current Rating: 350mA
  • Temperature Range: -40°C to 125°C
  • Package: horizontal, 4 PC pad
  • Height: 0.256" (6.50mm)
  • Impedance: 13 kOhms @ 1MHz
  • Inductance: 4.7mH @ 100kHz
