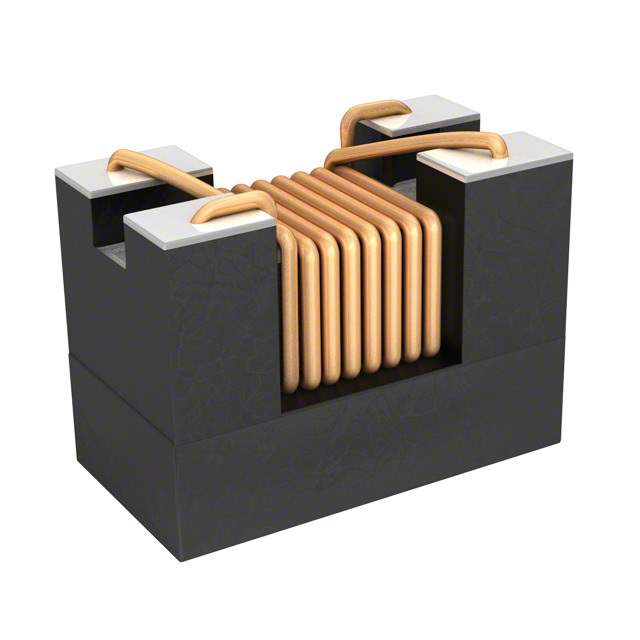

744235601

Name: 744235601
Brand: Wurth Electronics Inc
SKU: 857307
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	744235601
Manufacturer	Wurth Electronics Inc
Catalog	Common Mode Chokes
Description	CMC 1UH 1.2A 2LN 600OHM SMD / 1 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 600 Ohms @ 100 MHz 1.2A DCR 120mOhm
Datasheet	744235601 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	Wurth Electronics Inc
Series	WE-CNSW
Package	Tape & Reel
Product Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	600 Ohms @ 100 MHz
Inductance @ Frequency	1 µH @ 100 kHz
Current Rating (Max)	1.2A
DC Resistance (DCR) (Max)	120mOhm
Voltage Rating - DC	60V
Temperature Range - Operating	-40°C ~ 125°C
Ratings	AEC-Q200
Mounting Type	Surface Mount
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max)	0.118" (3.00mm)
Package / Case	Horizontal, 4 PC Pad
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	857307-744235601
Ultra Librarian 3D Model	Ultra Librarian 744235601 CAD Model

Description

The WE-CNSW series common mode chokes from Wurth Electronics Inc are high-quality filters designed for use in signal line applications.

Package: Tape & reel
Voltage Rating: 60V (DC)
Size/Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height: 0.118" (3.00mm)
Current Rating: 1.2A
Impedance: 600 Ohms @ 100 MHz
Inductance: 1 µH @ 100 kHz
DC Resistance: 120mOhm (max)
Mounting: Surface mountable
Package/Case: Horizontal, 4 PC pad
Temperature Range: -40°C to 125°C
