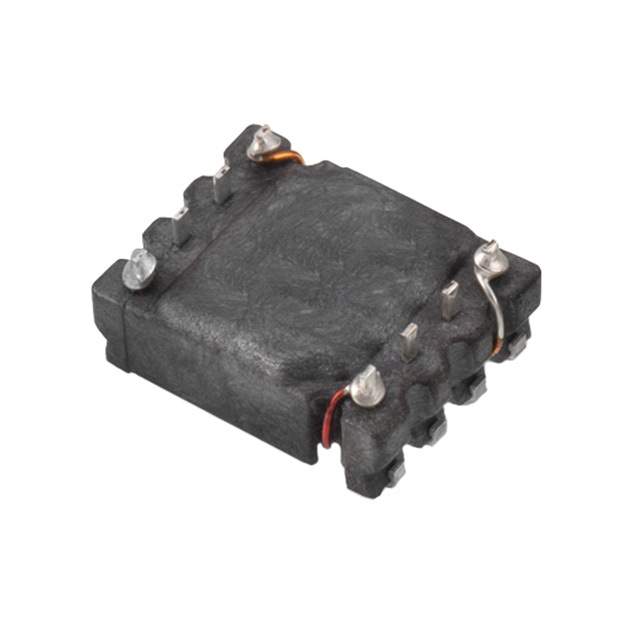

744205 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 4
Inductance @ Frequency 100 µH @ 100 kHz
Current Rating (Max) 700mA
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Height (Max) 0.238" (6.05mm)
Package / Case Horizontal, 8 Gull Wing
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857288-744205
Ultra Librarian 3D Model Ultra Librarian 744205 CAD Model

Description

The WE-SL series is a signal line common mode choke filter designed for noise suppression in electronic circuits.

  • Voltage Rating: 80V DC
  • Current Rating: 700mA
  • Height: 0.238" (6.05mm)
  • Mounting: Surface Mount
  • Package: Tape & reel
  • Standard Package: 600 pcs
  • Inductance: 100 µH @ 100 kHz
