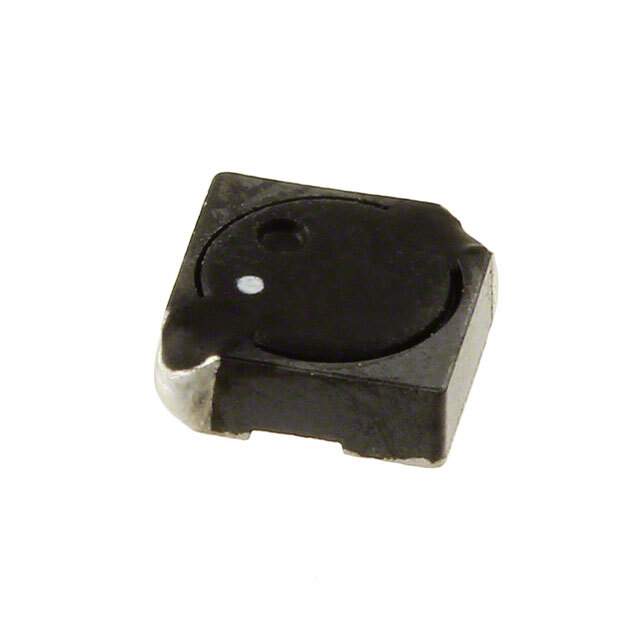

74408941022 Real Image
Same model may have multiple batches, images only for reference.

74408941022

Part No 74408941022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.1A 66.1MOHM SM
Datasheet
74408941022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-SPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.1 A
Current - Saturation (Isat) 3.6A
Shielding Shielded
DC Resistance (DCR) 66.1mOhm Max
Frequency - Self Resonant 65MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1919 (4848 Metric)
Size / Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857276-74408941022
Ultra Librarian 3D Model Ultra Librarian 74408941022 CAD Model

Description

The WE-SPC series from Wurth Electronics Inc is a shielded drum core, wirewound inductor.

  • Size: 0.189" L x 0.189" W (4.80mm x 4.80mm)
  • Inductance: 2.2 µH
  • Maximum Seated Height: 0.083" (2.10mm)
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Tolerance: ±20%
  • DC Resistance (DCR): 66.1mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 2.1 A
  • Saturation Current: 3.6A
